802015

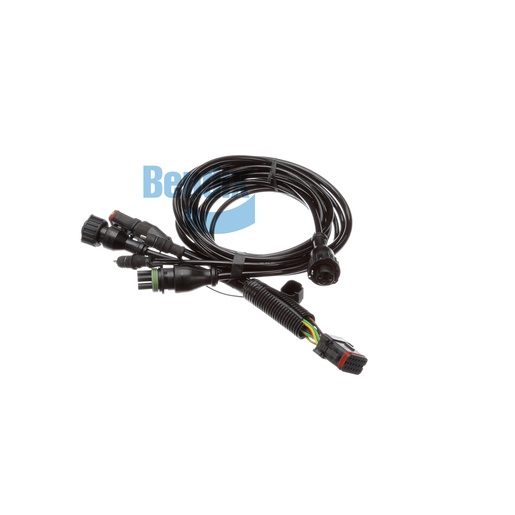

Wiring Harness
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Wiring Harness from Bendix is designed specifically for trailer ABS and stability systems, ensuring robust connectivity and reliable performance in commercial vehicles. This harness features multiple connectors, including a weather-sealed option, making it suitable for various environmental conditions. With a length that accommodates a range of trailer setups, it enhances the functionality of your ABS system by providing seamless communication between components. The meticulous design ensures easy installation and maintenance, making it an essential part for any fleet operator. When it comes to sourcing high-quality parts, Source One Parts Center stands out as the premier choice for genuine Bendix OEM components, allowing you to maintain the highest standards for your vehicles.
SPECIFICATIONS
VMRS
013-011-096: Wiring Harness, ECU - Antilock Brakes
Pigtail Length (C1)
1524.0 mm (60 IN)
Pigtail Length (C2)
1524.0 mm (60 IN)
Pigtail Length (C3)
1524.0 mm (60 IN)
Pigtail Length (C5)
228.6 mm (9 IN)
Pigtail Length (C6)
228.6 mm (9 IN)
Harmonized System (HS) Code
854430
Pigtail Length (C4)
914.0 mm (36 IN)
Connector 4
Circular DIN 3-Way Connector - ISO 15170-1 Twist-Lock (Female)
Connector 6
Circular DIN 3-Way Connector - ISO 15170-1 Twist-Lock (Female)
Connector (Main)
Deutsch DT Series 18-Way Sealed Connector (Female)
Connector 5
Deutsch DT Series 4-Way Sealed Connector (Female)
Application (C5)
Diagnostic (w/ Protection Cap)
Application (C4)
MOD 2 (Modulator Cable)
Application (C6)
MOD 3 (Modulator Cable)
Country of Origin
Mexico
Application (C3)
Power Cable
Application (C1)
Speed Sensor SAL (Road)
Application (C2)
Speed Sensor SAR (Curb)
Connector 1
Standard 2-Pin DIN Barrel Sealed Connector (Plug)
Connector 2
Standard 2-Pin DIN Barrel Sealed Connector (Plug)
Application (Main)
Trailer ABS ECU
Harness Application
Trailer ABS Power Harness
Connector 3
Weather Pack 5-Way Sealed Connector (Female)
Weight
1.5 lb
