$174.95
$209.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

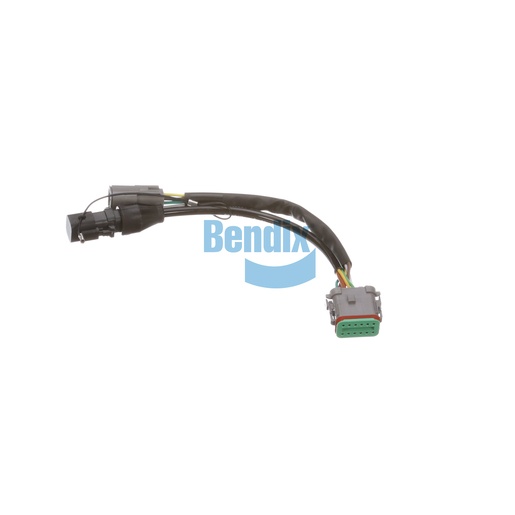

Optimize your trailer's braking system with the Bendix wiring harness, an essential component for ABS and stability systems. This harness is expertly designed to ensure seamless connectivity between your trailer's electronic components, enhancing the reliability and performance of your braking system. With its durable construction, it withstands the rigors of heavy-duty use, ensuring that your vehicle operates safely and efficiently. Whether you're upgrading an existing system or installing a new one, this wiring harness makes the process straightforward and hassle-free. It's crucial to invest in high-quality components for your commercial vehicle, and when it comes to genuine Bendix OEM parts, Source One Parts Center is your go-to destination for reliability and service.
SPECIFICATIONS
Height
0.0 mm (0.0 in)
Width
0.0 mm (0.0 in)
VMRS
013-011-096: Wiring Harness, ECU - Antilock Brakes
Length
228.6 mm (9.0 in)
Pigtail Length (C1)
228.6 mm (9 IN)
Pigtail Length (C2)
228.6 mm (9 IN)
Harmonized System (HS) Code
854430
Application (C2)
Auxiliary Cable
Connector (Main)
Deutsch DT Series 12-Way Sealed Connector (Female)
Connector 1
Deutsch DT Series 4-Way Sealed Connector (Female)
Connector 2
Deutsch DTM Series 6-Way Sealed Connector (Male)
Application (C1)
Diagnostic (w/ Protection Cap)
Country of Origin
Mexico
Application (Main)
Trailer ABS ECU
Harness Application
Trailer ABS Power Harness
Weight
0.4 lb
