K143214
Wiring Harness
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

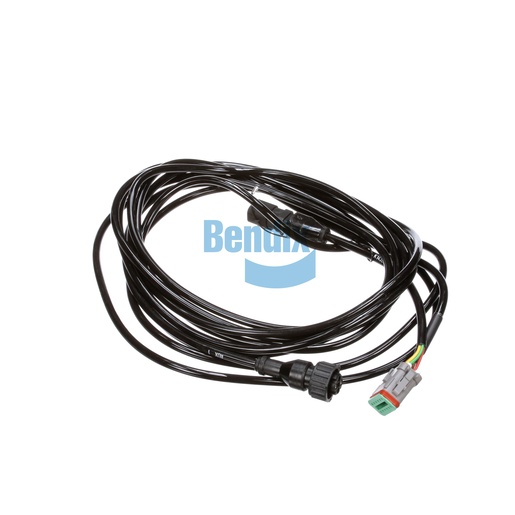

The Bendix Wiring Harness is a vital component for the ABS system in trailers, designed to ensure seamless communication between the antilock brake system and the trailer's electrical components. This high-quality harness features multiple connectors, including sealed connectors for durability and reliability in various environmental conditions. With a generous length of 6,500 mm, it provides the flexibility needed for various trailer configurations. The harness is engineered to support both diagnostic applications and auxiliary cable needs, making it versatile for different setups. This wiring harness not only enhances the functionality of your trailer's braking system but also ensures compliance with safety standards. For those in search of genuine Bendix parts, Source One Parts Center offers the best selection and service to meet your needs.
SPECIFICATIONS
Height
0.0 mm (0.0 in)
Width
0.0 mm (0.0 in)
VMRS
013-011-096: Wiring Harness, ECU - Antilock Brakes
Pigtail Length (C1)
228.6 mm (9 IN)
Length
6500.0 mm (255.91 in)
Pigtail Length (C2)
6500.0 mm (256 IN)
Harmonized System (HS) Code
854430
Application (C2)
Auxiliary Cable
Connector 2
Circular DIN 3-Way Connector - ISO 15170-1 Twist-Lock (Female)
Connector (Main)
Deutsch DT Series 12-Way Sealed Connector (Female)
Connector 1
Deutsch DT Series 4-Way Sealed Connector (Female)
Application (C1)
Diagnostic (w/ Protection Cap)
Country of Origin
Mexico
Application (Main)
Trailer ABS ECU
Harness Application
Trailer ABS Power Harness
Weight
1.34 lb
