$139.95
$167.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

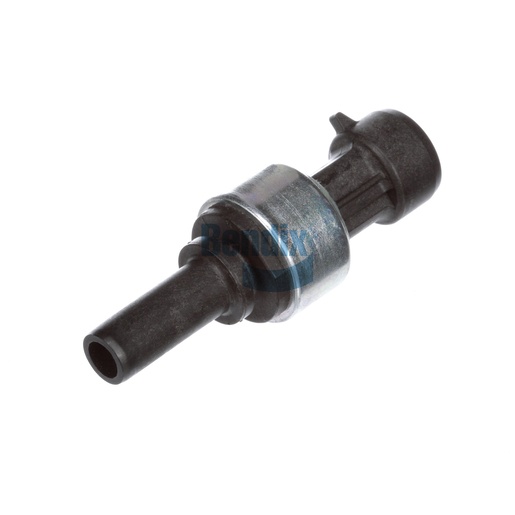

The Pressure Transducer from Bendix is a vital component for monitoring and controlling atmospheric pressure in your trailer's ABS and stability system. This advanced sensor is designed for precision, ensuring accurate readings with an impressive accuracy of ±3.0% of the full-scale output (5 VDC). With a robust construction that can withstand extreme temperatures ranging from -40 °F to 257 °F, it guarantees reliable performance in varying environmental conditions. The transducer's compact design, with dimensions of 24.1 mm (0.95 in) in width and a weight of just 0.09 lb, allows for easy installation in tight spaces. By integrating this pressure transducer into your braking system, you ensure enhanced safety and efficiency on the road. Source One Parts Center offers genuine Bendix OEM parts, ensuring that you receive quality components that enhance vehicle reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Operating Pressure Range
0-150 PSI
Width
24.1 mm (0.95 in)
Maximum Operating Temperature
257 °F (125 °C)
Height
26.7 mm (1.05 in)
Operating Voltage Range
4.75 VDC - 5.25 VDC
Length
71.1 mm (2.8 in)
Current (Nominal)
8.0 mA
Harmonized System (HS) Code
848130,902620
Cautionary Note(s)
Mates with 3/8" Weatherhead QCAB / Parker Prestomatic Fittings
Connector Type
Metri-Pack 150 Series 3-Way Sealed Connector (Male)
Country of Origin
Mexico
Accuracy
± 3.0% of the Full Scale Output (5 VDC)
Pneumatic Connection
Ø 3/8 IN Stem
Weight
0.09 lb
