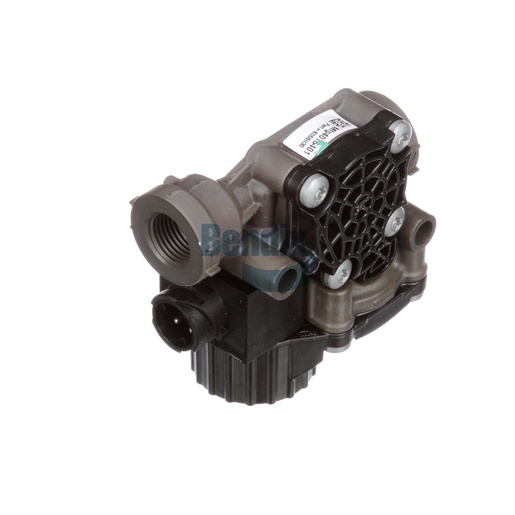

K079664
ABS Modulator Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The ABS Modulator Valve is a crucial component in the Bendix ABS and stability systems for trailers, designed to enhance safety and performance on the road. This valve is engineered to control the braking process efficiently, preventing wheel lock-up during sudden stops and ensuring stable handling. With a quick-release modulator type and a nominal current of 4.6 A, it effectively manages air pressure for optimal braking performance. This valve has been built to withstand a wide range of temperatures, making it reliable in various operating conditions. The compact design allows for easy installation, making it a preferred choice for fleet maintenance professionals. For quality and genuine Bendix OEM parts, Source One Parts Center is your best option, providing a comprehensive selection to meet the needs of your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-071: Modulator Valve - Antilock Brakes
Delivery Port
1/2-14 NPT
Supply Port
1/2-14 NPT
Height
105.0 mm (4.13 in)
Length
110.0 mm (4.33 in)
Voltage (Nominal)
12 Volts
Duty Cycle
15 sec / 5 min
Maximum Operating Pressure
150 PSI
Maximum Solenoid "On" Time
150 sec
Maximum Operating Temperature
185 °F (85 °C)
Current (Nominal)
4.6 A
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120,847989
Connector Type
Circular DIN 3-Way Connector (ISO 15170-1 Twist-Lock)
Exhaust Port
Dust Shield
Country of Origin
Mexico
Modulator Type
QR (Quick Release)
Mounting
Ø .335 IN (2x)
Weight
1.5 lb
