K079666

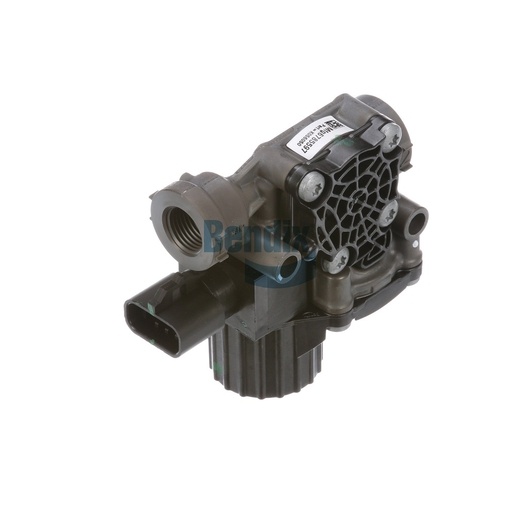

ABS Modulator Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix ABS Modulator Valve is an essential component of your truck's anti-lock braking system, designed to enhance safety and performance during critical braking situations. This valve intelligently manages brake pressure, allowing for optimal control and preventing wheel lockup, which is vital for maintaining stability and traction on slippery surfaces. Engineered for durability, it operates efficiently under varying conditions, ensuring your braking system performs reliably when you need it most. With advanced features such as a high-flow modulator type and precise port configurations, this valve is tailored for the demands of commercial vehicles. For those in search of genuine Bendix OEM parts, Source One Parts Center is your premier destination, offering authentic components that guarantee quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-071: Modulator Valve - Antilock Brakes
Delivery Port
1/2-14 NPT
Supply Port
1/2-14 NPT
Height
105.0 mm (4.13 in)
Length
110.0 mm (4.33 in)
Voltage (Nominal)
12 Volts
Duty Cycle
15 sec / 5 min
Maximum Operating Pressure
150 PSI
Maximum Solenoid "On" Time
150 sec
Maximum Operating Temperature
185 °F (85 °C)
Current (Nominal)
4.6 A
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120,847989
Exhaust Port
Dust Shield
Modulator Type
HF (High Flow)
Connector Type
Metri-Pack 280 Series 3-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Ø .335 IN (2x)
Weight
1.57 lb
