$299.95
$359.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

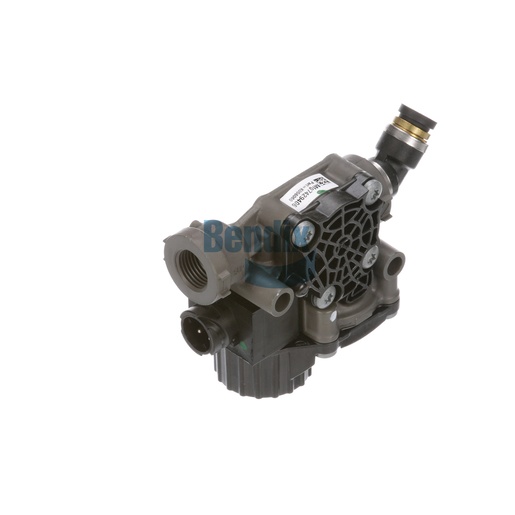

The ABS Modulator Valve is a vital component of the anti-lock braking system in trailers, designed to enhance safety and control during braking. This valve regulates brake pressure to prevent wheel lock-up, ensuring that vehicles maintain traction and stability, especially in adverse conditions. Its durable construction, combined with advanced engineering, ensures reliability and performance under the most demanding circumstances. The ABS Modulator Valve is easy to install and integrates seamlessly with existing brake systems, making it an essential upgrade for fleet managers looking to enhance vehicle safety. For those in search of high-quality truck parts, Source One Parts Center is the best source for genuine Bendix OEM parts, providing the best solutions for maintaining your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-071: Modulator Valve - Antilock Brakes
Delivery Port
1/2 PTC (45° Swivel Elbow / Composite)
Supply Port
1/2-14 NPT
Height
105.0 mm (4.13 in)
Length
110.0 mm (4.33 in)
Voltage (Nominal)
12 Volts
Duty Cycle
15 sec / 5 min
Maximum Operating Pressure
150 PSI
Maximum Solenoid "On" Time
150 sec
Maximum Operating Temperature
185 °F (85 °C)
Current (Nominal)
4.6 A
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120,847989
Connector Type
Circular DIN 3-Way Connector (ISO 15170-1 Twist-Lock)
Exhaust Port
Dust Shield
Country of Origin
Mexico
Modulator Type
QR (Quick Release)
Mounting
Ø .335 IN (2x)
Weight
1.64 lb
