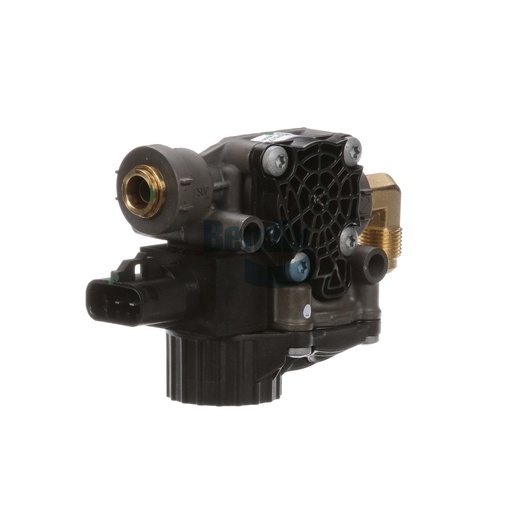

K079668SC
ABS Modulator Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The ABS Modulator Valve represents the pinnacle of technology in Bendix ABS and Stability systems, ensuring your commercial vehicle operates safely and effectively. This valve features a quick-release modulator type and is designed to maintain optimal brake pressure, enhancing the performance of your vehicle's braking system. With a compact design and lightweight construction, it fits seamlessly into various applications, providing reliable service in demanding environments. The valve operates efficiently at a maximum pressure of 150 PSI and is designed to withstand temperatures ranging from -40 °F to 185 °F, ensuring longevity and durability. Trust Source One Parts Center for your Bendix OEM parts, as we guarantee you will find the best selection and quality to keep your vehicle performing at its best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-071: Modulator Valve - Antilock Brakes
Supply Port
1/2 PTC (Straight)
Delivery Port
1/2-14 NPT x 1/2 Tube (45° Flare / 90° Elbow)
Height
105.0 mm (4.13 in)
Length
110.0 mm (4.33 in)
Voltage (Nominal)
12 Volts
Duty Cycle
15 sec / 5 min
Maximum Operating Pressure
150 PSI
Maximum Solenoid "On" Time
150 sec
Maximum Operating Temperature
185 °F (85 °C)
Current (Nominal)
4.6 A
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120,847989
Exhaust Port
Dust Shield
Connector Type
Metri-Pack 280 Series 3-Way Sealed Connector (Male)
Country of Origin
Mexico
Modulator Type
QR (Quick Release)
Mounting
Ø .335 IN (2x)
Weight
1.81 lb
