FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

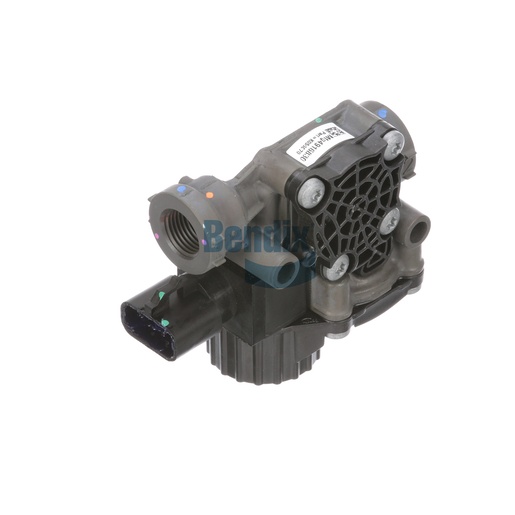

The Bendix ABS Modulator Valve is designed to enhance the anti-lock braking system in commercial vehicles, ensuring optimal safety and performance. This valve features a quick-release design that facilitates efficient braking action, preventing wheel lockup during emergency stops. Its robust construction allows for reliable operation under demanding conditions, making it a critical component for fleet vehicles. The modulator's configuration includes multiple ports for flexible installation options, ensuring compatibility with various braking systems. Trust Source One Parts Center for the best selection of genuine Bendix OEM parts, guaranteeing high-quality components designed for commercial vehicle applications.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-071: Modulator Valve - Antilock Brakes
Delivery Port
1/2-14 NPT
Supply Port
1/2-14 NPT
Height
105.0 mm (4.13 in)
Length
110.0 mm (4.33 in)
Voltage (Nominal)
12 Volts
Duty Cycle
15 sec / 5 min
Maximum Operating Pressure
150 PSI
Maximum Solenoid "On" Time
150 sec
Maximum Operating Temperature
185 °F (85 °C)
Current (Nominal)
4.6 A
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120,847989
Exhaust Port
Dust Shield
Connector Type
Metri-Pack 280 Series 3-Way Sealed Connector (Male)
Country of Origin
Mexico
Modulator Type
QR (Quick Release)
Mounting
Ø .335 IN (2x)
Weight
1.58 lb
