K079672

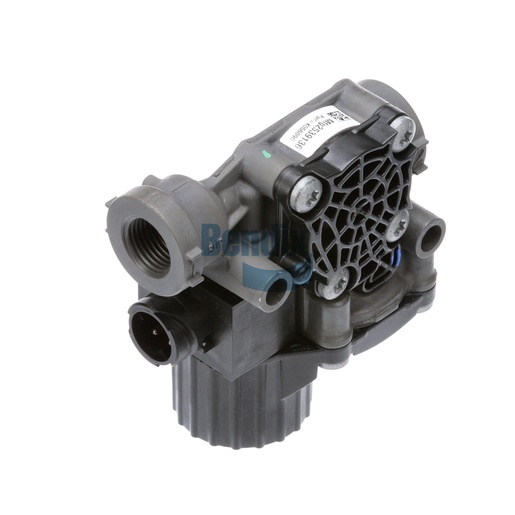

ABS Modulator Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The ABS Modulator Valve is a critical component designed to enhance the safety and stability of your commercial vehicle during braking. This high-flow modulator is engineered to respond quickly and effectively, ensuring optimal braking performance in various driving conditions. It features a compact design with a circular DIN 3-way connector for easy installation and electrical connections. With a nominal voltage of 24 volts and a maximum operating pressure of 150 PSI, this valve is built to withstand the demands of heavy-duty applications. The modulator's advanced design ensures that your braking system operates smoothly, providing the driver with better control and reducing the risk of skidding or loss of traction. For those looking to maintain their vehicle's performance with genuine Bendix OEM parts, Source One Parts Center is the premier choice, offering unparalleled quality and service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-071: Modulator Valve - Antilock Brakes
Delivery Port
1/2-14 NPT
Supply Port
1/2-14 NPT
Height
105.0 mm (4.13 in)
Length
110.0 mm (4.33 in)
Duty Cycle
15 sec / 5 min
Maximum Operating Pressure
150 PSI
Maximum Solenoid "On" Time
150 sec
Maximum Operating Temperature
185 °F (85 °C)
Voltage (Nominal)
24 Volts
Current (Nominal)
3.2 A
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120,847989
Connector Type
Circular DIN 3-Way Connector (ISO 15170-1 Twist-Lock)
Exhaust Port
Dust Shield
Modulator Type
HF (High Flow)
Country of Origin
Mexico
Mounting
Ø .335 IN (2x)
Weight
1.56 lb
