K079678

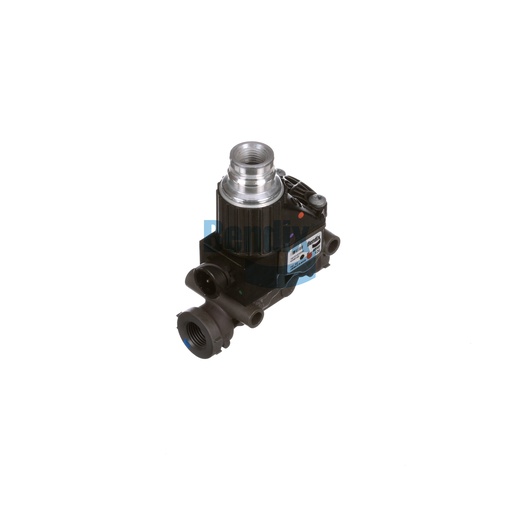

ABS Modulator Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix ABS Modulator Valve is an essential component for maintaining the efficiency and safety of your vehicle's braking system. This high-performance valve is designed to enhance the capabilities of your anti-lock braking system (ABS), ensuring optimal braking performance even under challenging conditions. With a compact design and weighing only 0.7 kg (1.63 lb), it is engineered for easy installation while providing robust functionality. By integrating this modulator valve into your braking system, you can significantly improve vehicle safety and performance, especially during emergency stops. For reliable and genuine Bendix OEM parts, Source One Parts Center is the best choice for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-071: Modulator Valve - Antilock Brakes
Delivery Port
1/2-14 NPT
Supply Port
1/2-14 NPT
Height
105.0 mm (4.13 in)
Length
110.0 mm (4.33 in)
Voltage (Nominal)
12 Volts
Duty Cycle
15 sec / 5 min
Maximum Operating Pressure
150 PSI
Maximum Solenoid "On" Time
150 sec
Maximum Operating Temperature
185 °F (85 °C)
Current (Nominal)
4.6 A
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120,847989
Exhaust Port
Adapter (without Silencer)
Connector Type
Circular DIN 3-Way Connector (ISO 15170-1 Twist-Lock)
Modulator Type
HF (High Flow)
Country of Origin
Mexico
Mounting
Ø .335 IN (2x)
Weight
1.63 lb
