FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

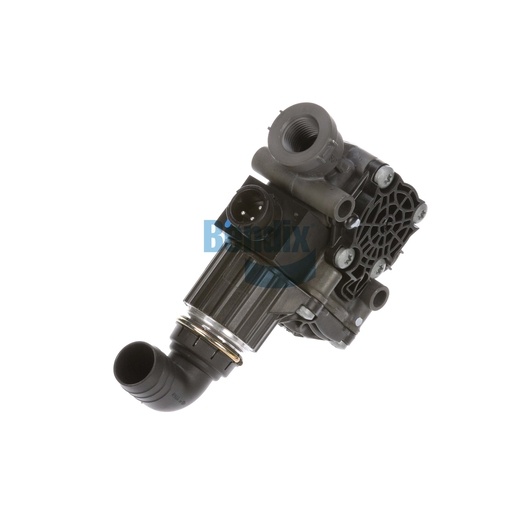

The ABS Modulator Valve is an integral component of the anti-lock braking system, ensuring optimal performance and stability under various driving conditions. This high-flow modulator is designed to manage the brake pressure effectively, preventing wheel lock-up and maintaining traction during emergency stops. With a maximum operating pressure of 150 PSI, it guarantees robust performance even in demanding situations. The valve features a circular DIN 3-way connector, making installation straightforward and hassle-free. Its compact design and lightweight structure (0.8 kg) enhance compatibility with a variety of trailer setups, making it a versatile choice for fleet operators. The modulator's ability to operate within a wide temperature range (-40°F to 185°F) ensures it will perform reliably in any environment. For those seeking top-quality Bendix OEM parts, Source One Parts Center is the best choice, providing genuine components that ensure safety and performance for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-071: Modulator Valve - Antilock Brakes
Delivery Port
1/2-14 NPT
Supply Port
1/2-14 NPT
Height
105.0 mm (4.13 in)
Length
110.0 mm (4.33 in)
Voltage (Nominal)
12 Volts
Duty Cycle
15 sec / 5 min
Maximum Operating Pressure
150 PSI
Maximum Solenoid "On" Time
150 sec
Maximum Operating Temperature
185 °F (85 °C)
Current (Nominal)
4.6 A
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120,847989
Exhaust Port
Barbed 90° Snorkel - 1.00 IN Tube
Connector Type
Circular DIN 3-Way Connector (ISO 15170-1 Twist-Lock)
Modulator Type
HF (High Flow)
Country of Origin
Mexico
Mounting
Ø .335 IN (2x)
Weight
1.68 lb
