$349.95
$419.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

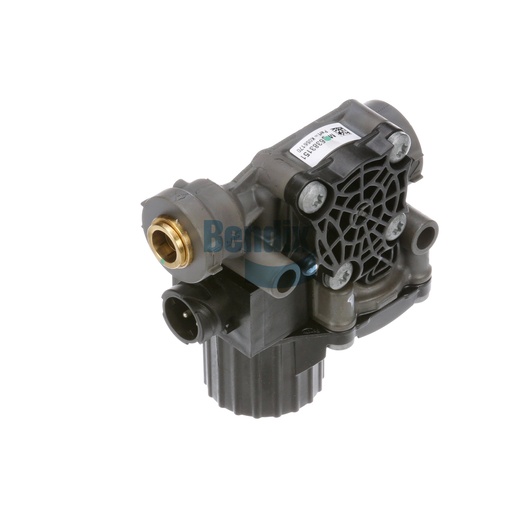

The Bendix ABS Modulator Valve is an essential component for ensuring the safety and performance of your vehicle's braking system. Engineered for trailers, this valve plays a critical role in the anti-lock braking system, helping to prevent wheel lock-up during braking. With a high flow capability and precise engineering, it ensures optimal brake performance under varying conditions. The valve is designed for easy installation and maintenance, making it a practical choice for fleet operators. Investing in a high-quality modulator valve like this one not only enhances safety but also prolongs the life of your braking system. Source One Parts Center is your trusted partner for genuine Bendix OEM parts, providing the reliability your commercial vehicles need.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-071: Modulator Valve - Antilock Brakes
Supply Port
1/2 PTC (Straight)
Delivery Port
1/2-14 NPT
Height
105.0 mm (4.13 in)
Length
110.0 mm (4.33 in)
Voltage (Nominal)
12 Volts
Duty Cycle
15 sec / 5 min
Maximum Operating Pressure
150 PSI
Maximum Solenoid "On" Time
150 sec
Maximum Operating Temperature
185 °F (85 °C)
Current (Nominal)
4.6 A
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120,847989
Connector Type
Circular DIN 3-Way Connector (ISO 15170-1 Twist-Lock)
Exhaust Port
Dust Shield
Modulator Type
HF (High Flow)
Country of Origin
Mexico
Mounting
Ø .335 IN (2x)
Weight
1.61 lb
