K079684SC

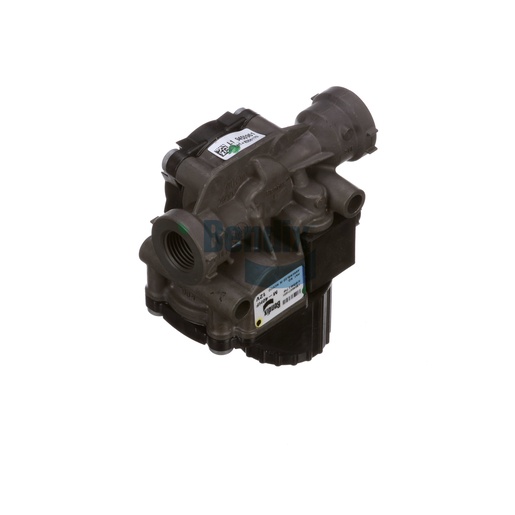

ABS Modulator Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The ABS Modulator Valve from Bendix is a crucial component designed to enhance the stability and safety of your trailer's braking system. Featuring a high-flow design, this modulator valve plays an essential role in managing brake pressure, which is vital for effective anti-lock braking functionality. Weighing only 0.7 kg (1.61 lb), this compact yet powerful valve is engineered to withstand rigorous operating conditions while ensuring quick response times for improved vehicle control. Its sophisticated design includes a dust shield exhaust port, which helps to protect the internal components from contaminants, enhancing longevity and performance. Ideal for fleets focused on safety and efficiency, this modulator valve is a must-have for modern trailer systems. When looking for reliable braking components, trust Source One Parts Center for your genuine Bendix OEM parts, where quality and performance are guaranteed.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-071: Modulator Valve - Antilock Brakes
Supply Port
1/2 PTC (Straight)
Delivery Port
1/2-14 NPT
Height
105.0 mm (4.13 in)
Length
110.0 mm (4.33 in)
Voltage (Nominal)
12 Volts
Duty Cycle
15 sec / 5 min
Maximum Operating Pressure
150 PSI
Maximum Solenoid "On" Time
150 sec
Maximum Operating Temperature
185 °F (85 °C)
Current (Nominal)
4.6 A
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120,847989
Connector Type
Circular DIN 3-Way Connector (ISO 15170-1 Twist-Lock)
Exhaust Port
Dust Shield
Modulator Type
HF (High Flow)
Country of Origin
Mexico
Mounting
Ø .335 IN (2x)
Weight
1.61 lb
