K107922

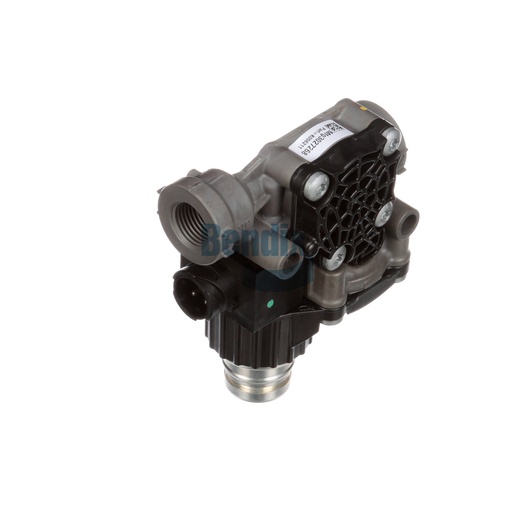

ABS Modulator Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The ABS Modulator Valve is a crucial component in the antilock braking system for trailers, designed to enhance safety and control during braking. This valve is engineered to respond quickly to braking demands, optimizing brake pressure for each wheel to prevent lock-ups and improve vehicle stability. Manufactured in Mexico, it features a compact design, measuring 61.0 mm in width, 105.0 mm in height, and 110.0 mm in length, making it suitable for various trailer configurations. The modulator valve is built to withstand extreme conditions, with a maximum operating pressure of 150 PSI, ensuring reliable performance even in challenging environments. By maintaining optimal brake pressure, this valve plays a significant role in enhancing overall safety and performance on the road. Source One Parts Center is the best choice for sourcing genuine Bendix OEM parts, providing you with high-quality components that you can trust.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-071: Modulator Valve - Antilock Brakes
Delivery Port
1/2-14 NPT
Supply Port
1/2-14 NPT
Height
105.0 mm (4.13 in)
Length
110.0 mm (4.33 in)
Voltage (Nominal)
12 Volts
Duty Cycle
15 sec / 5 min
Maximum Operating Pressure
150 PSI
Maximum Solenoid "On" Time
150 sec
Maximum Operating Temperature
185 °F (85 °C)
Current (Nominal)
3.2 A
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120,847989
Exhaust Port
Adapter (without Silencer)
Connector Type
Circular DIN 3-Way Connector (ISO 15170-1 Twist-Lock)
Country of Origin
Mexico
Modulator Type
QR (Quick Release)
Mounting
Ø .335 IN (2x)
Weight
1.62 lb
