K128914SC

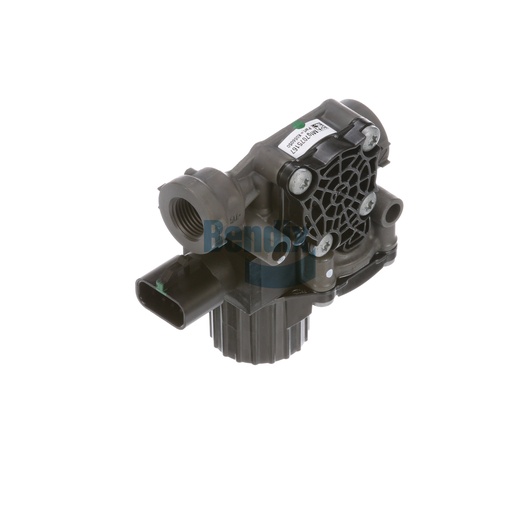

ABS Modulator Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The ABS Modulator Valve from Bendix is a critical component designed to improve the braking efficiency and safety of commercial vehicles. This high-performance valve monitors and controls braking force, ensuring optimal brake function during various driving conditions. With its compact design and durable construction, this modulator valve integrates seamlessly into existing braking systems, enhancing overall performance and reliability. Designed for high flow, this valve efficiently manages air pressure, contributing to faster response times and improved vehicle handling. For the best selection of genuine Bendix OEM parts, trust Source One Parts Center, where quality and reliability are our top priorities.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-071: Modulator Valve - Antilock Brakes
Delivery Port
1/2-14 NPT
Supply Port
1/2-14 NPT
Height
105.0 mm (4.13 in)
Length
110.0 mm (4.33 in)
Voltage (Nominal)
12 Volts
Duty Cycle
15 sec / 5 min
Maximum Operating Pressure
150 PSI
Maximum Solenoid "On" Time
150 sec
Maximum Operating Temperature
185 °F (85 °C)
Current (Nominal)
4.6 A
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120,847989
Exhaust Port
Dust Shield
Modulator Type
HF (High Flow)
Connector Type
Metri-Pack 280 Series 3-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Ø .335 IN (2x)
Weight
1.59 lb
