$319.95
$383.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

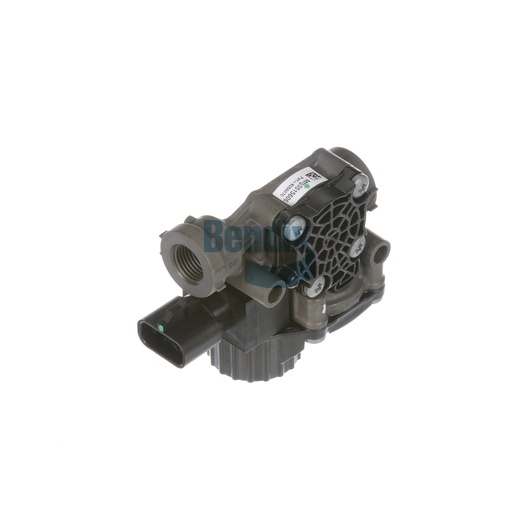

The ABS Modulator Valve from Bendix is crucial for maintaining optimal braking performance in commercial vehicles. This valve regulates brake pressure during anti-lock braking, ensuring that the vehicle remains stable and controllable under hard braking conditions. With a maximum operating pressure of 150 PSI and a compact design measuring 61 mm in width and 110 mm in length, it offers efficient functionality without compromising space. The valve's durable construction supports a wide temperature range, making it suitable for various environments and conditions. This part not only enhances safety but also improves the overall performance of your vehicle’s braking system. Trust Source One Parts Center for your Bendix OEM parts to ensure top-notch quality and reliable performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-071: Modulator Valve - Antilock Brakes
Delivery Port
1/2-14 NPT
Supply Port
1/2-14 NPT
Height
105.0 mm (4.13 in)
Length
110.0 mm (4.33 in)
Voltage (Nominal)
12 Volts
Duty Cycle
15 sec / 5 min
Maximum Operating Pressure
150 PSI
Maximum Solenoid "On" Time
150 sec
Maximum Operating Temperature
185 °F (85 °C)
Current (Nominal)
4.6 A
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120,847989
Exhaust Port
Dust Shield
Connector Type
Metri-Pack 280 Series 3-Way Sealed Connector (Male)
Country of Origin
Mexico
Modulator Type
QR (Quick Release)
Mounting
Ø .335 IN (2x)
Weight
1.58 lb
