FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

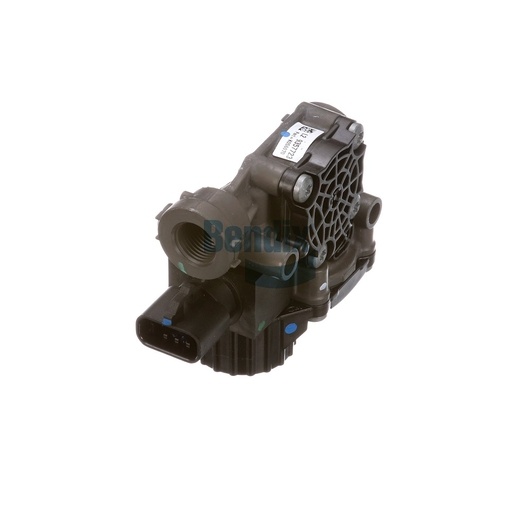

The Bendix ABS Modulator Valve is an essential component in ensuring the safety and performance of your commercial vehicle’s braking system. This modulator valve enhances antilock braking functionality by regulating brake pressure to prevent wheel lock-up during sudden stops, thereby improving vehicle control and stability. With a robust design that supports a maximum operating pressure of 150 PSI, this valve is built to perform under the most demanding conditions. Its compact size, with a net weight of just 0.7 kg, allows for easy installation in various truck models. The ABS Modulator Valve is engineered for reliability, ensuring consistent performance while extending the lifespan of your braking system. Choose Source One Parts Center for authentic Bendix parts, where quality and reliability come first.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-071: Modulator Valve - Antilock Brakes
Delivery Port
1/2-14 NPT
Supply Port
1/2-14 NPT
Height
105.0 mm (4.13 in)
Length
110.0 mm (4.33 in)
Voltage (Nominal)
12 Volts
Duty Cycle
15 sec / 5 min
Maximum Operating Pressure
150 PSI
Maximum Solenoid "On" Time
150 sec
Maximum Operating Temperature
185 °F (85 °C)
Current (Nominal)
4.6 A
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120,847989
Exhaust Port
Dust Shield
Connector Type
Metri-Pack 280 Series 3-Way Sealed Connector (Male)
Country of Origin
Mexico
Modulator Type
QR (Quick Release)
Mounting
Ø .335 IN (2x)
Weight
1.57 lb
