K128916SC

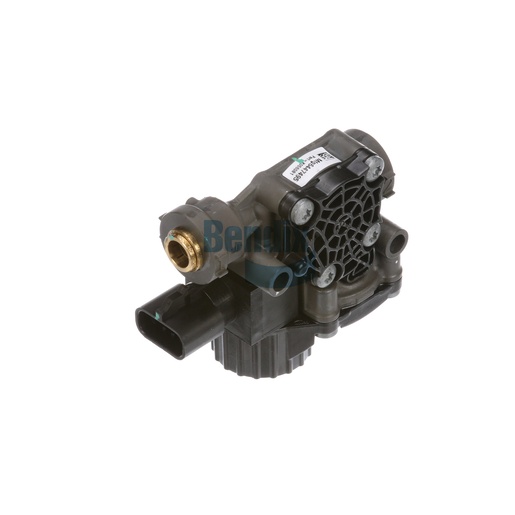

ABS Modulator Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The ABS Modulator Valve is an essential component for maintaining stability and control in trailer braking systems. This quick-release modulator valve enhances braking efficiency by ensuring rapid release of brake pressure, significantly improving vehicle response during critical braking situations. With multiple ports for supply and delivery, it is designed for seamless integration into various Bendix braking systems. Operating efficiently in a range of temperatures, this valve is built to withstand the rigors of heavy-duty applications. Weighing only 1.65 lbs, it combines durability with a lightweight design for easy installation. For genuine Bendix OEM parts, trust Source One Parts Center to keep your fleet safe and reliable.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-071: Modulator Valve - Antilock Brakes
Delivery Port
1/2 PTC (Straight)
Supply Port
1/2 PTC (Straight)
Height
105.0 mm (4.13 in)
Length
110.0 mm (4.33 in)
Voltage (Nominal)
12 Volts
Duty Cycle
15 sec / 5 min
Maximum Operating Pressure
150 PSI
Maximum Solenoid "On" Time
150 sec
Maximum Operating Temperature
185 °F (85 °C)
Current (Nominal)
4.6 A
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120,847989
Exhaust Port
Dust Shield
Connector Type
Metri-Pack 280 Series 3-Way Sealed Connector (Male)
Country of Origin
Mexico
Modulator Type
QR (Quick Release)
Mounting
Ø .335 IN (2x)
Weight
1.65 lb
