$299.95
$359.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

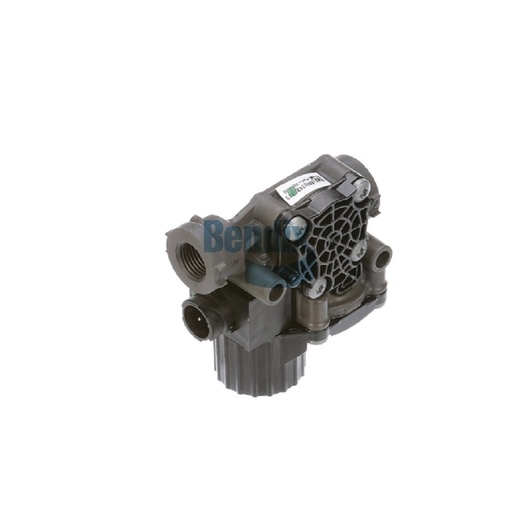

The ABS Modulator Valve is a sophisticated component crucial for maintaining the stability and safety of your trailer's braking system. Engineered in Mexico, this valve features a high flow design that optimizes brake response time, ensuring your vehicle can stop effectively under any conditions. Among its many benefits, the valve includes a dust shield and is designed for easy installation with a circular DIN 3-way connector, enhancing its compatibility with various systems. With a nominal voltage of 24 volts and a current of 3.2 A, it operates efficiently within the demanding environments of commercial transportation. This modulator plays a vital role in the overall ABS system, helping to prevent wheel lockup and maintain vehicle control during braking. By choosing the ABS Modulator Valve, you improve the reliability and safety of your trailer. Source One Parts Center is your premier source for genuine Bendix OEM parts, providing you with the assurance of quality and reliability for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-071: Modulator Valve - Antilock Brakes
Delivery Port
1/2-14 NPT
Supply Port
1/2-14 NPT
Height
105.0 mm (4.13 in)
Length
110.0 mm (4.33 in)
Duty Cycle
15 sec / 5 min
Maximum Operating Pressure
150 PSI
Maximum Solenoid "On" Time
150 sec
Maximum Operating Temperature
185 °F (85 °C)
Voltage (Nominal)
24 Volts
Current (Nominal)
3.2 A
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120,847989
Connector Type
Circular DIN 3-Way Connector (ISO 15170-1 Twist-Lock)
Exhaust Port
Dust Shield
Modulator Type
HF (High Flow)
Country of Origin
Mexico
Mounting
Ø .335 IN (2x)
Weight
1.59 lb
