K128917SC

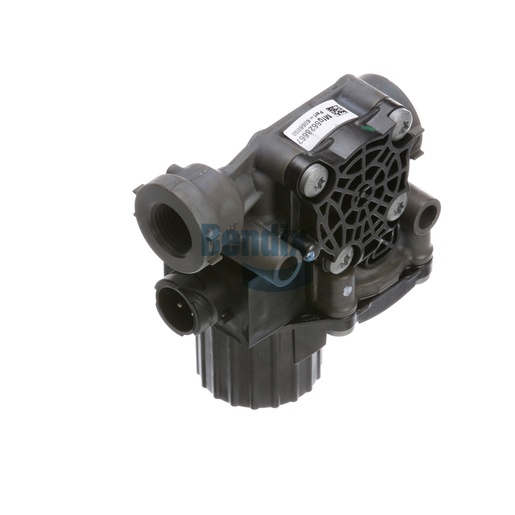

ABS Modulator Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The ABS Modulator Valve is a key component in your vehicle's antilock brake system, ensuring effective braking performance under various driving conditions. This valve controls the brake pressure during an ABS event, preventing wheel lockup and maintaining vehicle stability. Designed for reliability and efficiency, it features a compact form factor with a net weight of 0.7 kg, making it easy to integrate into your existing braking system. With an operating temperature range from -40°F to 185°F, this modulator valve is built to perform in diverse environments. It is essential for enhancing the safety and performance of your commercial vehicle, ensuring that you can navigate challenging road conditions with confidence. Source One Parts Center is your best option for acquiring genuine Bendix OEM parts, ensuring your vehicle's braking system operates at peak performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-071: Modulator Valve - Antilock Brakes
Delivery Port
1/2-14 NPT
Supply Port
1/2-14 NPT
Height
105.0 mm (4.13 in)
Length
110.0 mm (4.33 in)
Duty Cycle
15 sec / 5 min
Maximum Operating Pressure
150 PSI
Maximum Solenoid "On" Time
150 sec
Maximum Operating Temperature
185 °F (85 °C)
Voltage (Nominal)
24 Volts
Current (Nominal)
3.2 A
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120,847989
Connector Type
Circular DIN 3-Way Connector (ISO 15170-1 Twist-Lock)
Exhaust Port
Dust Shield
Modulator Type
HF (High Flow)
Country of Origin
Mexico
Mounting
Ø .335 IN (2x)
Weight
1.56 lb
