K128919OR

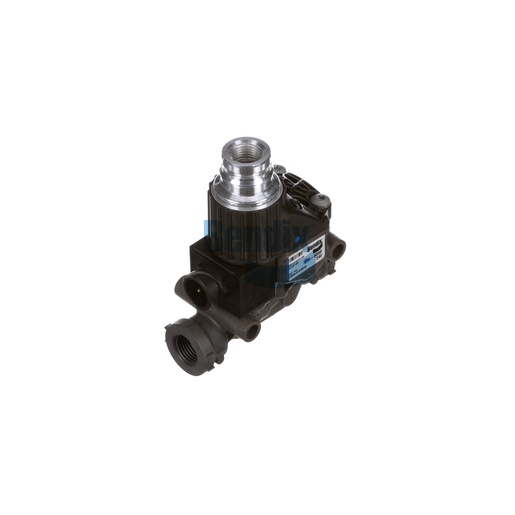

ABS Modulator Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix ABS Modulator Valve is crucial for maintaining the stability and safety of your trailer's braking system. This component effectively regulates brake pressure to prevent wheel lock-up during hard braking, enhancing control and safety on the road. Its robust construction and advanced design ensure reliability even in the most demanding conditions. The valve's easy installation makes it an excellent choice for both fleet management and individual truck owners looking to improve braking performance. When you choose Source One Parts Center for your Bendix OEM parts, you're guaranteed to receive the highest quality components for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-071: Modulator Valve - Antilock Brakes
Delivery Port
1/2-14 NPT
Supply Port
1/2-14 NPT
Height
105.0 mm (4.13 in)
Length
110.0 mm (4.33 in)
Duty Cycle
15 sec / 5 min
Maximum Operating Pressure
150 PSI
Maximum Solenoid "On" Time
150 sec
Maximum Operating Temperature
185 °F (85 °C)
Voltage (Nominal)
24 Volts
Current (Nominal)
3.2 A
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120,847989
Exhaust Port
Adapter (without Silencer)
Connector Type
Circular DIN 3-Way Connector (ISO 15170-1 Twist-Lock)
Modulator Type
HF (High Flow)
Country of Origin
Mexico
Mounting
Ø .335 IN (2x)
Weight
1.64 lb
