K128920OR

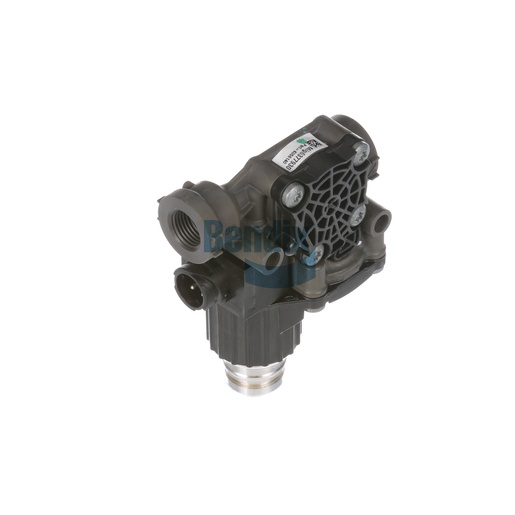

ABS Modulator Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The ABS Modulator Valve from Bendix is a crucial component designed to optimize the performance of antilock braking systems in commercial vehicles. This valve is engineered for high flow and efficiency, ensuring that braking response is swift and effective even under demanding conditions. Its durable construction and precise design allow it to withstand the rigors of commercial use, making it a reliable choice for fleet operators. With features that include easy installation and compatibility with various Bendix systems, the ABS modulator valve plays a key role in enhancing vehicle safety. For those seeking high-quality, genuine Bendix OEM parts, Source One Parts Center is the premier destination, ensuring you receive reliable components for your commercial braking systems.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-071: Modulator Valve - Antilock Brakes
Delivery Port
1/2-14 NPT
Supply Port
1/2-14 NPT
Height
105.0 mm (4.13 in)
Length
110.0 mm (4.33 in)
Voltage (Nominal)
12 Volts
Duty Cycle
15 sec / 5 min
Maximum Operating Pressure
150 PSI
Maximum Solenoid "On" Time
150 sec
Maximum Operating Temperature
185 °F (85 °C)
Current (Nominal)
4.6 A
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120,847989
Exhaust Port
Adapter (without Silencer)
Connector Type
Circular DIN 3-Way Connector (ISO 15170-1 Twist-Lock)
Modulator Type
HF (High Flow)
Country of Origin
Mexico
Mounting
Ø .335 IN (2x)
Weight
1.64 lb
