K128921OR

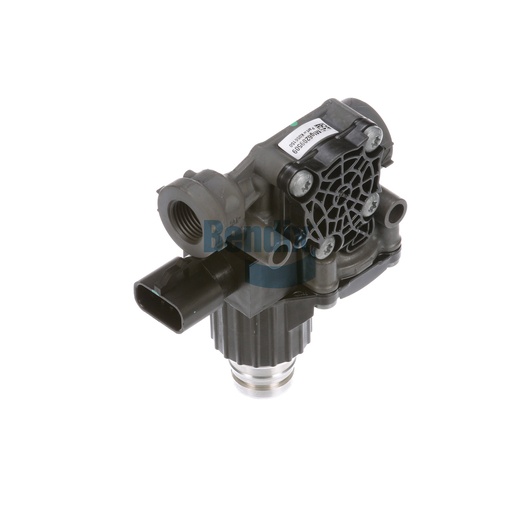

ABS Modulator Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The ABS Modulator Valve from Bendix is a critical component in maintaining the stability and safety of commercial vehicles. Engineered for high flow and efficiency, this valve plays a vital role in the antilock braking system, ensuring optimal brake performance in various driving conditions. With a robust design that includes a high flow modulator type and a nominal current of 4.6 A, this valve enhances the responsiveness of the braking system, providing drivers with the confidence they need on the road. Its compact size and lightweight design make it suitable for a wide range of applications, making it a reliable choice for any fleet. Source One Parts Center is your premier destination for genuine Bendix OEM parts, ensuring you receive quality products tailored for your vehicle's needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-071: Modulator Valve - Antilock Brakes
Delivery Port
1/2-14 NPT
Supply Port
1/2-14 NPT
Height
105.0 mm (4.13 in)
Length
110.0 mm (4.33 in)
Voltage (Nominal)
12 Volts
Duty Cycle
15 sec / 5 min
Maximum Operating Pressure
150 PSI
Maximum Solenoid "On" Time
150 sec
Maximum Operating Temperature
185 °F (85 °C)
Current (Nominal)
4.6 A
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120,847989
Exhaust Port
Adapter (without Silencer)
Modulator Type
HF (High Flow)
Connector Type
Metri-Pack 280 Series 3-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Ø .335 IN (2x)
Weight
1.66 lb
