K128921SC

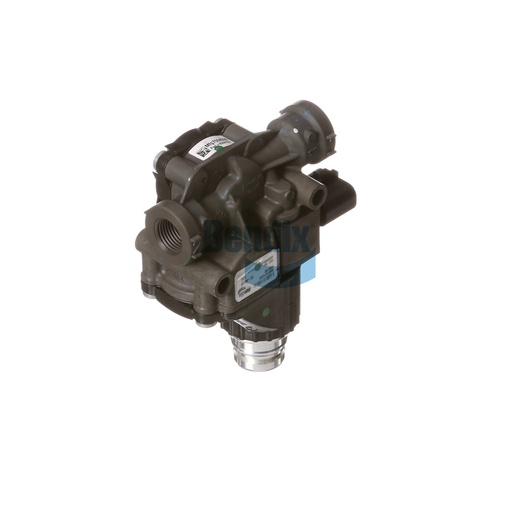

ABS Modulator Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix ABS Modulator Valve is a critical component in enhancing the braking performance and stability of your commercial vehicle. Designed for trailer applications, this high-flow modulator valve is manufactured in Mexico and features advanced technology to ensure quick and precise braking response. It is engineered for a maximum operating pressure of 150 PSI, providing robust performance under heavy loads. Measuring 2.4 inches in width and 4.13 inches in height, it weighs only 1.69 pounds, facilitating easy installation without compromising space. This modulator valve is essential for ensuring safe and effective braking, especially in emergency situations. For genuine Bendix OEM parts, trust Source One Parts Center to deliver the quality and reliability your vehicle demands.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-071: Modulator Valve - Antilock Brakes
Delivery Port
1/2-14 NPT
Supply Port
1/2-14 NPT
Height
105.0 mm (4.13 in)
Length
110.0 mm (4.33 in)
Voltage (Nominal)
12 Volts
Duty Cycle
15 sec / 5 min
Maximum Operating Pressure
150 PSI
Maximum Solenoid "On" Time
150 sec
Maximum Operating Temperature
185 °F (85 °C)
Current (Nominal)
4.6 A
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120,847989
Exhaust Port
Adapter (without Silencer)
Modulator Type
HF (High Flow)
Connector Type
Metri-Pack 280 Series 3-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Ø .335 IN (2x)
Weight
1.69 lb
