K128922OR

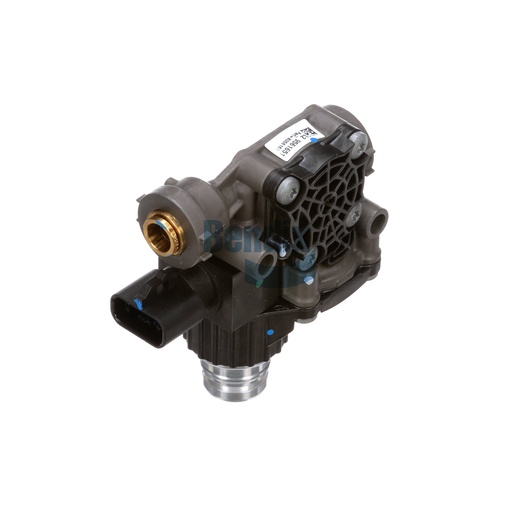

ABS Modulator Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Enhance your trailer's braking efficiency with the Bendix ABS Modulator Valve, designed to improve vehicle control and stability. This essential component integrates seamlessly into the antilock braking system, allowing for precise modulation of brake pressure during operation. With a robust construction suitable for heavy-duty applications, this modulator valve ensures reliable performance under various driving conditions. Engineered to maximize safety, it plays a crucial role in preventing wheel lockup, allowing for optimal stopping power while maintaining traction. When selecting parts for your braking system, trust Source One Parts Center to provide authentic Bendix OEM components, ensuring you receive the highest quality products for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-071: Modulator Valve - Antilock Brakes
Delivery Port
1/2 PTC (Straight)
Supply Port
1/2 PTC (Straight)
Height
105.0 mm (4.13 in)
Length
110.0 mm (4.33 in)
Voltage (Nominal)
12 Volts
Duty Cycle
15 sec / 5 min
Maximum Operating Pressure
150 PSI
Maximum Solenoid "On" Time
150 sec
Maximum Operating Temperature
185 °F (85 °C)
Current (Nominal)
4.6 A
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120,847989
Exhaust Port
Adapter (without Silencer)
Connector Type
Metri-Pack 280 Series 3-Way Sealed Connector (Male)
Country of Origin
Mexico
Modulator Type
QR (Quick Release)
Mounting
Ø .335 IN (2x)
Weight
1.73 lb
