K128923SC

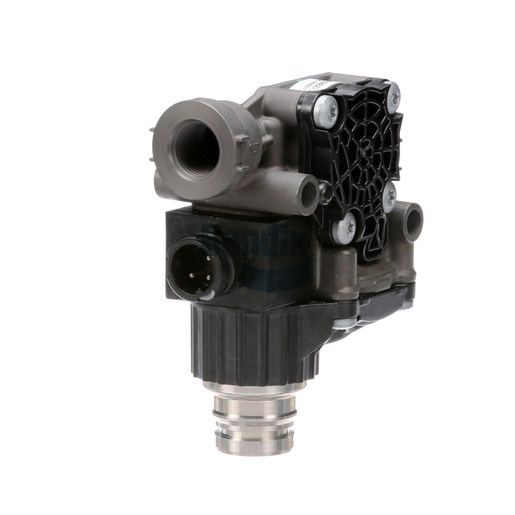

ABS Modulator Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Ensure the safety and efficiency of your trailer's braking system with the Bendix ABS Modulator Valve. This critical component manages the anti-lock braking system, providing enhanced control and stability during braking, particularly in challenging conditions. With a compact design that fits various trailer setups, this modulator valve is essential for maintaining optimal braking performance. Engineered for durability, it can withstand the rigors of heavy-duty applications, ensuring reliable operation throughout its lifespan. The modulator's quick-release feature enhances braking response times, contributing to overall vehicle safety. For genuine Bendix OEM parts that you can trust, Source One Parts Center stands out as the best choice, offering high-quality products designed for the demands of commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-071: Modulator Valve - Antilock Brakes
Delivery Port
1/2-14 NPT
Supply Port
1/2-14 NPT
Height
105.0 mm (4.13 in)
Length
110.0 mm (4.33 in)
Duty Cycle
15 sec / 5 min
Maximum Operating Pressure
150 PSI
Maximum Solenoid "On" Time
150 sec
Maximum Operating Temperature
185 °F (85 °C)
Voltage (Nominal)
24 Volts
Current (Nominal)
3.2 A
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120,847989
Exhaust Port
Adapter (without Silencer)
Connector Type
Circular DIN 3-Way Connector (ISO 15170-1 Twist-Lock)
Country of Origin
Mexico
Modulator Type
QR (Quick Release)
Mounting
Ø .335 IN (2x)
Weight
1.63 lb
