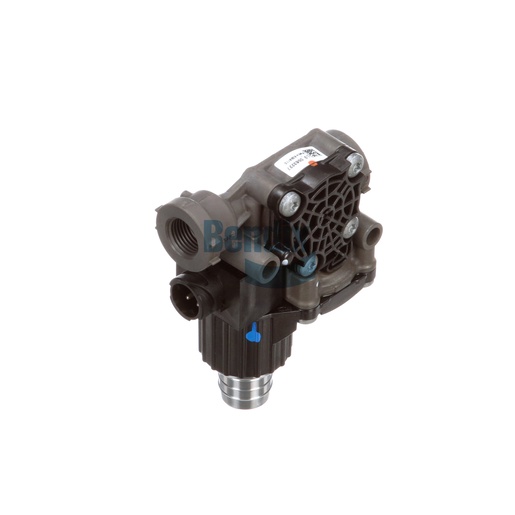

K128926SC
ABS Modulator Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The ABS Modulator Valve is a vital component for the anti-lock braking system in trailers, enhancing safety and control during braking. This high-flow valve features a durable design that enables it to manage the braking pressure effectively, preventing wheel lock-up and maintaining traction on slippery surfaces. With a nominal voltage of 24 volts and a maximum operating pressure of 150 PSI, this modulator valve is robust enough to handle the demands of commercial vehicle operations. Its compact size allows for easy installation, while the circular DIN connector ensures a secure connection. Designed for reliability, it can operate in extreme temperatures ranging from -40°F to 185°F. When looking for reliable braking solutions, Source One Parts Center is the ideal place to purchase genuine Bendix OEM parts, ensuring your vehicle's safety and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-071: Modulator Valve - Antilock Brakes
Delivery Port
1/2-14 NPT
Supply Port
1/2-14 NPT
Height
105.0 mm (4.13 in)
Length
110.0 mm (4.33 in)
Duty Cycle
15 sec / 5 min
Maximum Operating Pressure
150 PSI
Maximum Solenoid "On" Time
150 sec
Maximum Operating Temperature
185 °F (85 °C)
Voltage (Nominal)
24 Volts
Current (Nominal)
3.2 A
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120,847989
Exhaust Port
Barbed Straight Snorkel - 1.00 IN Tube
Connector Type
Circular DIN 3-Way Connector (ISO 15170-1 Twist-Lock)
Modulator Type
HF (High Flow)
Country of Origin
Mexico
Mounting
Ø .335 IN (2x)
Weight
1.61 lb
