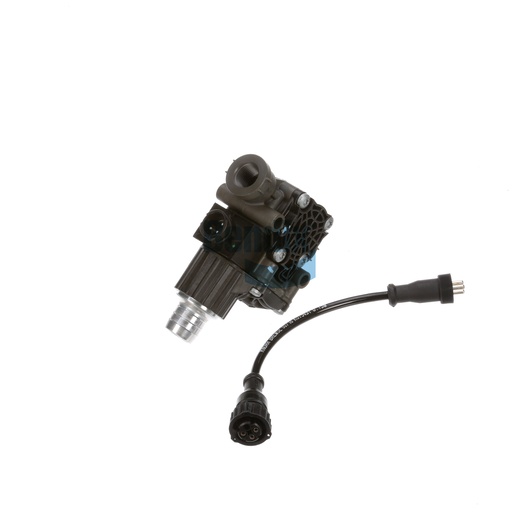

K161992OR
ABS Modulator Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix ABS Modulator Valve is a crucial component for maintaining stability and safety in trailer braking systems. Engineered with precision, this valve controls the flow of air to the brakes, ensuring effective modulation during braking events. With a compact design that measures 61.0 mm in width and 105.0 mm in height, and weighing 0.8 kg (1.75 lb), it fits seamlessly into existing systems. This product is designed to operate under extreme conditions, with a maximum operating pressure of 150 PSI, contributing to enhanced vehicle control and reduced stopping distances. Ideal for heavy-duty applications, the Bendix ABS Modulator Valve is built to provide reliable performance under all circumstances. For dependable and high-quality Bendix OEM parts, Source One Parts Center stands out as the best choice for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-071: Modulator Valve - Antilock Brakes
Delivery Port
1/2-14 NPT
Supply Port
1/2-14 NPT
Height
105.0 mm (4.13 in)
Length
110.0 mm (4.33 in)
Duty Cycle
15 sec / 5 min
Maximum Operating Pressure
150 PSI
Maximum Solenoid "On" Time
150 sec
Maximum Operating Temperature
185 °F (85 °C)
Voltage (Nominal)
24 Volts
Adapter Cable Included
3-Pin DIN (Straight) to 3-Pin Metric
Current (Nominal)
3.2 A
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120,847989
Exhaust Port
Barbed Straight Snorkel - 1.00 IN Tube
Connector Type
Circular DIN 3-Way Connector (ISO 15170-1 Twist-Lock)
Modulator Type
HF (High Flow)
Country of Origin
Mexico
Mounting
Ø .335 IN (2x)
Weight
1.75 lb
