$21.95
$26.34
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

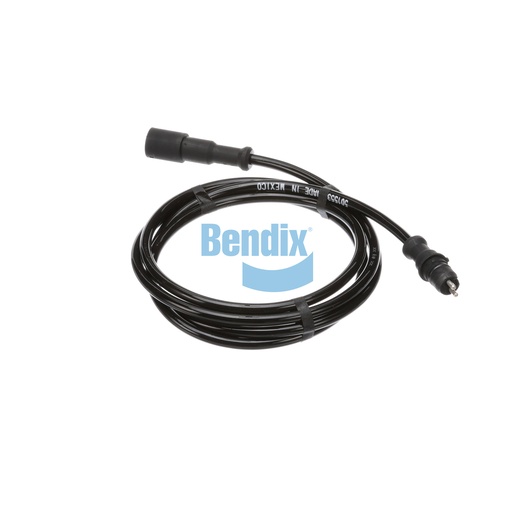

The Extension Cable from Bendix is designed to enhance the functionality of wheel speed sensors, ensuring reliable data transmission within your vehicle's ABS system. This cable features a length of 1524 mm, providing ample reach for various installation configurations. Its robust design includes standard 2-pin DIN barrel sealed connectors, ensuring secure connections that protect against environmental factors. With an ingress protection rating of IP6K9K, this extension cable is built to withstand harsh conditions, making it ideal for commercial vehicles operating in diverse environments. Manufactured in Mexico, it reflects Bendix's commitment to quality and performance. For genuine Bendix OEM parts, Source One Parts Center is your top source, guaranteeing high-quality components for your vehicle's needs.
SPECIFICATIONS
VMRS
013-011-004: Cable - Wheel To Controller - Sensor
Harness Length
1524.0
Number of Wires
2
Harmonized System (HS) Code
854430
Ingress Protection Rating
IP6K9K
Country of Origin
Mexico
Wire Protection Sleeve Included
No
Connector 2
Standard 2-Pin DIN Barrel Sealed Connector (Plug)
Connector 1
Standard 2-Pin DIN Barrel Sealed Connector (Socket)
Application
Wheel Speed Sensor
Weight
0.86 lb
