$7.49
$8.99
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

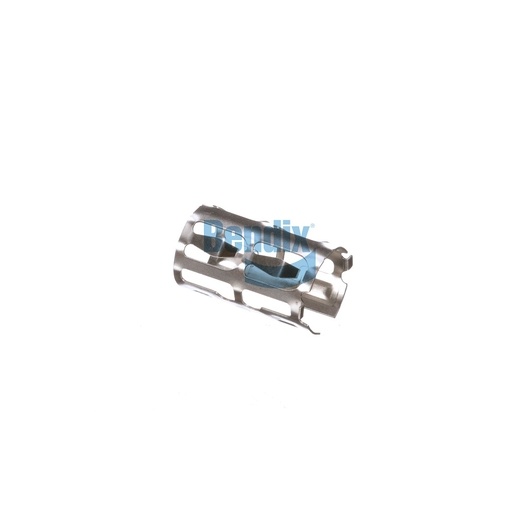

The Clamping Sleeve from Bendix is a critical component in the ABS and Stability systems of trailers, ensuring secure and reliable connections for wheel speed sensor extensions and related hardware. Constructed from high-quality 301 AISI stainless steel, this sleeve is designed to withstand extreme temperatures ranging from -40 °F to 356 °F, providing exceptional durability in harsh operating conditions. Weighing only 0.06 lb, it is lightweight yet robust, making it easy to handle during installation while maintaining the structural integrity needed for reliable performance. This clamping sleeve plays a vital role in ensuring accurate sensor readings, which are essential for effective braking and stability control. When it comes to sourcing authentic Bendix OEM parts, Source One Parts Center is the best choice for quality and reliability, ensuring your vehicle operates at its best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Height
18.0 mm (0.71 in)
Width
18.0 mm (0.71 in)
Material
301 AISI Stainless Steel
Length
31.5 mm (1.24 in)
Maximum Operating Temperature
356 °F (180 °C)
Harmonized System (HS) Code
732690
Country of Origin
Germany
Cautionary Note(s)
Sensor must be greased before installation
Weight
0.06 lb
