K137203
Extension Cable
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

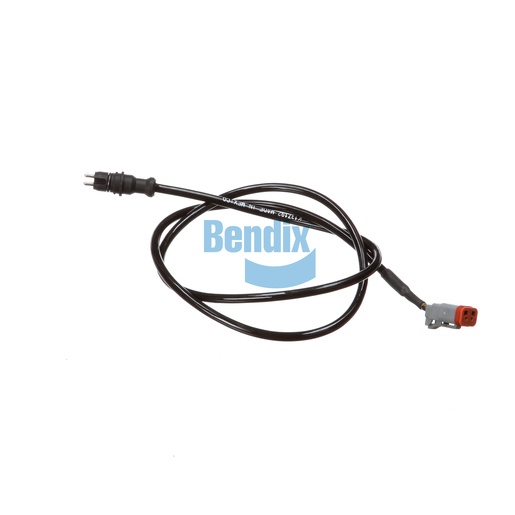

The Extension Cable from Bendix is specifically designed for wheel speed sensors, ensuring reliable connectivity and performance in ABS and stability systems. With a length of 40 inches, this high-quality cable is built to withstand the demands of commercial applications, providing the necessary flexibility and durability. It features a Deutsch DT series sealed connector, ensuring a secure connection that protects against moisture and debris. The cable's ingress protection rating of IP6K9K guarantees it can perform well under harsh conditions, making it ideal for heavy-duty vehicles. When you need genuine Bendix OEM parts, Source One Parts Center is the top choice, offering authentic components that ensure your vehicle's performance and safety.
SPECIFICATIONS
VMRS
013-011-004: Cable - Wheel To Controller - Sensor
Harness Length
1016.0
Length
1016.0 mm (40.0 in)
Width
16.8 mm (0.66 in)
Height
19.4 mm (0.76 in)
Number of Wires
2
Harmonized System (HS) Code
854430
Connector 1
Deutsch DT Series 2-Way Sealed Connector (Female)
Ingress Protection Rating
IP6K9K
Country of Origin
Mexico
Wire Protection Sleeve Included
No
Connector 2
Standard 2-Pin DIN Barrel Sealed Connector (Plug)
Application
Wheel Speed Sensor
Weight
0.28 lb
