$21.95
$26.34
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

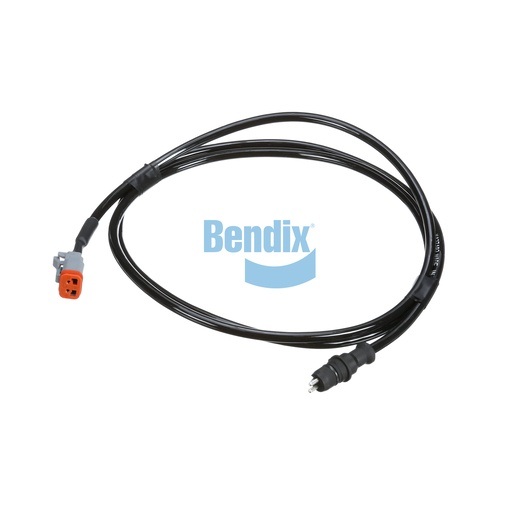

This Extension Cable is a vital component for enhancing the functionality of your vehicle's ABS and stability systems. Designed to connect wheel speed sensors with ease, this cable features durable construction for long-lasting performance even in challenging conditions. With a harness length of 1524mm and a robust design that meets IP6K9K ingress protection standards, it ensures reliable communication between your system components. Weighing only 0.1 kg and measuring 16.8mm in width and 19.4mm in height, it is compact yet powerful. Trust Source One Parts Center to deliver genuine Bendix OEM parts that provide the quality and reliability your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-011-004: Cable - Wheel To Controller - Sensor
Harness Length
1524.0
Length
1524.0 mm (60.0 in)
Width
16.8 mm (0.66 in)
Height
19.4 mm (0.76 in)
Number of Wires
2
Harmonized System (HS) Code
854430
Connector 1
Deutsch DT Series 2-Way Sealed Connector (Female)
Ingress Protection Rating
IP6K9K
Country of Origin
Mexico
Wire Protection Sleeve Included
No
Connector 2
Standard 2-Pin DIN Barrel Sealed Connector (Plug)
Application
Wheel Speed Sensor
Weight
0.33 lb
