K137207
Extension Cable
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

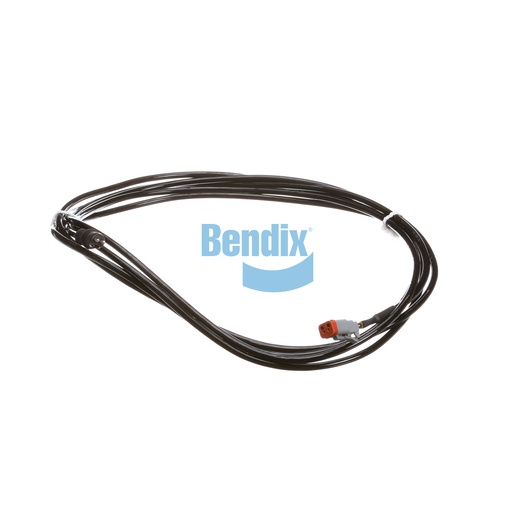

The Extension Cable from Bendix is an essential component designed to enhance the functionality of your wheel speed sensors, ensuring accurate data transmission for optimal braking performance. This high-quality cable features a robust construction with a length of 160 inches, providing ample reach for various vehicle configurations. With its Deutsch DT series 2-way sealed connector and a standard 2-pin DIN barrel sealed connector, this cable ensures a secure and reliable connection, safeguarding against environmental factors that could impact performance. The extension cable is rated IP6K9K for ingress protection, making it suitable for harsh operating conditions. By investing in this cable, you enhance the reliability of your braking system, ensuring safety on the road. Source One Parts Center is the premier destination for genuine Bendix OEM parts, ensuring you receive quality components that meet the highest industry standards.
SPECIFICATIONS
VMRS
013-011-004: Cable - Wheel To Controller - Sensor
Width
16.8 mm (0.66 in)
Height
19.4 mm (0.76 in)
Number of Wires
2
Harness Length
4064.0
Length
4064.0 mm (160.0 in)
Harmonized System (HS) Code
854430
Connector 1
Deutsch DT Series 2-Way Sealed Connector (Female)
Ingress Protection Rating
IP6K9K
Country of Origin
Mexico
Wire Protection Sleeve Included
No
Connector 2
Standard 2-Pin DIN Barrel Sealed Connector (Plug)
Application
Wheel Speed Sensor
