This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

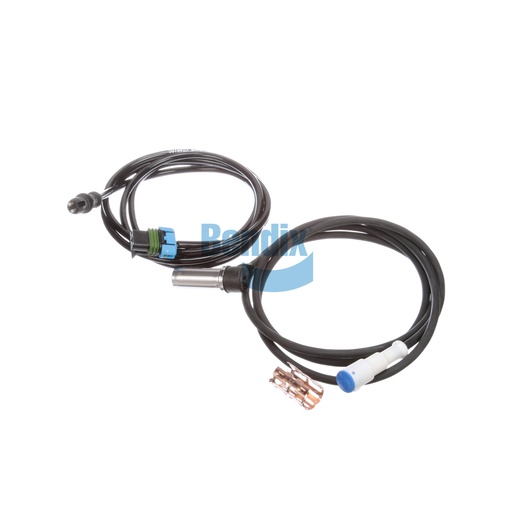

The Wheel Speed Sensor from Bendix is a crucial component in enhancing the safety and functionality of your vehicle's ABS and stability control systems. This sensor accurately monitors wheel speed, providing essential data to the vehicle's braking system to prevent wheel lockup and improve overall stability during braking. Designed for durability and reliability, the Wheel Speed Sensor is built to withstand the rigors of heavy-duty applications, ensuring consistent performance over time. Its easy installation process allows for quick replacements or upgrades, minimizing downtime for your fleet. By ensuring precise monitoring of wheel speed, this sensor plays a vital role in enhancing vehicle safety and control. For sourcing high-quality Bendix OEM parts, Source One Parts Center is your trusted destination for authentic components that keep your commercial vehicles road-ready.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-002: Sensor - Wheel Speed
Width
101.6 mm (4.0 in)
Height
102.1 mm (4.02 in)
Harness Length
1619
Length
228.6 mm (9.0 in)
Maximum Operating Temperature
320 °F (160 °C)
Harmonized System (HS) Code
854370
Body Type
90°
Connector Type
DIN 2-Pin Barrel Sealed Connector (Socket)
Country of Origin
Germany
Ingress Protection Rating
IPX9K
Convoluted Tubing Included
No
Grommet Included
No
Clamping Sleeve Included
Yes
Grease Included
Yes
Weight
0.84 lb
