5016412

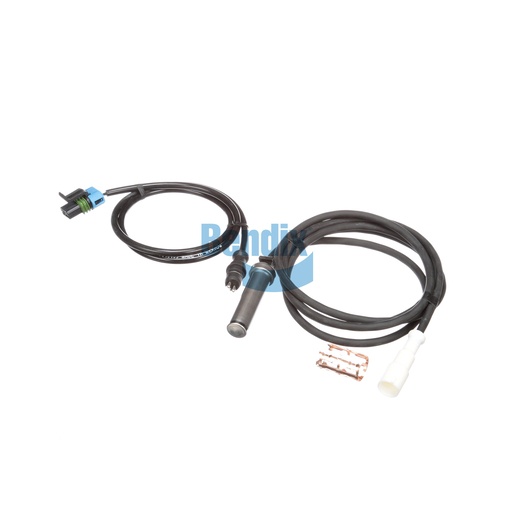

Wheel Speed Sensor
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Wheel Speed Sensor is an integral part of the ABS and stability control systems, providing critical information about wheel speed for enhanced braking performance. Designed for durability and reliability, this sensor features a straight body type with a robust DIN 2-Pin Barrel Sealed Connector, ensuring dependable connectivity. With a net weight of 0.4 kg, it is lightweight yet built to withstand harsh environments, making it ideal for commercial vehicles operating under demanding conditions. The sensor plays a vital role in preventing wheel lock-up during emergency braking scenarios, which not only improves safety but also optimizes the vehicle's fuel efficiency. For fleet managers looking to enhance vehicle performance and safety, the Bendix Wheel Speed Sensor is a top-tier choice. Choose Source One Parts Center for all your Bendix OEM parts needs, ensuring you receive the highest quality components for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-002: Sensor - Wheel Speed
Width
101.6 mm (4.0 in)
Height
102.1 mm (4.02 in)
Harness Length
1687
Length
228.6 mm (9.0 in)
Maximum Operating Temperature
320 °F (160 °C)
Harmonized System (HS) Code
854370
Connector Type
DIN 2-Pin Barrel Sealed Connector (Socket)
Country of Origin
Germany
Ingress Protection Rating
IPX9K
Convoluted Tubing Included
No
Grommet Included
No
Body Type
Straight
Clamping Sleeve Included
Yes
Grease Included
Yes
Weight
0.84 lb
