DESCRIPTION

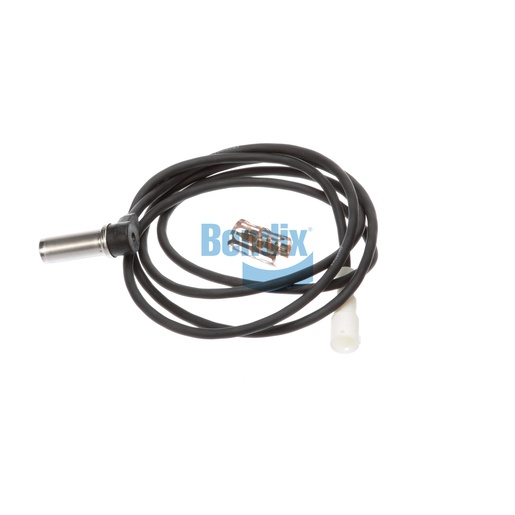

The Wheel Speed Sensor from Bendix is a pivotal component in the ABS and stability systems of commercial vehicles, providing critical data for effective braking control. This sensor monitors wheel speed in real-time, allowing for precise adjustments to braking force, thereby enhancing vehicle stability and safety during operation. Designed for durability, the Wheel Speed Sensor can withstand harsh environmental conditions, ensuring reliable performance over time. Its straightforward installation process makes it a convenient choice for fleet operators looking to maintain optimal braking performance. By investing in the Wheel Speed Sensor, you ensure that your vehicle can adapt to changing road conditions, enhancing overall safety. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, providing you with reliable components for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-002: Sensor - Wheel Speed
Width
101.6 mm (4.0 in)
Height
102.1 mm (4.02 in)
Harness Length
1919
Length
228.6 mm (9.0 in)
Maximum Operating Temperature
320 °F (160 °C)
Harmonized System (HS) Code
854370,902920
Body Type
90°
Connector Type
DIN 2-Pin Barrel Sealed Connector (Socket)
Ingress Protection Rating
IPX9K
Convoluted Tubing Included
No
Grommet Included
No
Country of Origin
United States
Clamping Sleeve Included
Yes
Grease Included
Yes
Weight
0.88 lb
