801539

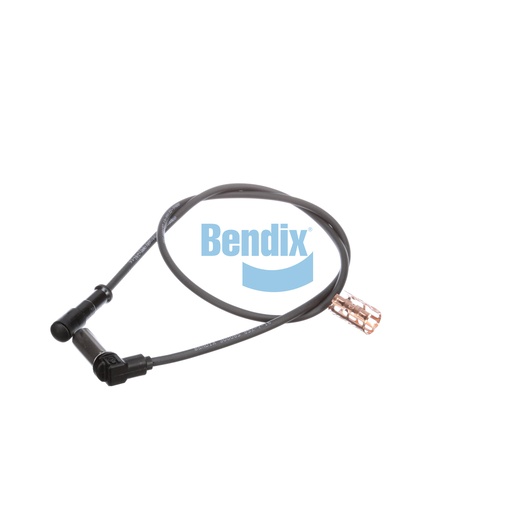

Wheel Speed Sensor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Wheel Speed Sensor from Bendix is a crucial component in modern ABS and stability control systems, providing real-time data on wheel speed to enhance braking performance and vehicle stability. This sensor is designed to withstand harsh operating conditions and is equipped with a DIN 2-Pin Barrel Sealed Connector to ensure reliable connectivity. With an ingress protection rating of IPX9K, it is resistant to water and dust, making it suitable for a variety of environments. The sensor's body type is straight, and it has a harness length of 919 mm, which allows for flexible installation across different vehicle models. This sensor not only promotes safety by preventing wheel lock-up during braking but also enhances fuel efficiency by optimizing brake performance. For fleet managers aiming to improve vehicle performance and safety, the Bendix Wheel Speed Sensor is an excellent investment. Source One Parts Center stands out as the best place to purchase genuine Bendix OEM parts for commercial vehicles, ensuring you receive top-quality components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-002: Sensor - Wheel Speed
Width
101.6 mm (4.0 in)
Height
102.1 mm (4.02 in)
Length
228.6 mm (9.0 in)
Maximum Operating Temperature
320 °F (160 °C)
Harmonized System (HS) Code
854370
Body Type
90°
Harness Length
919
Connector Type
DIN 2-Pin Barrel Sealed Connector (Socket)
Ingress Protection Rating
IPX9K
Country of Origin
Mexico
Convoluted Tubing Included
No
Grommet Included
No
Clamping Sleeve Included
Yes
Grease Included
Yes
Weight
0.51 lb
