801542

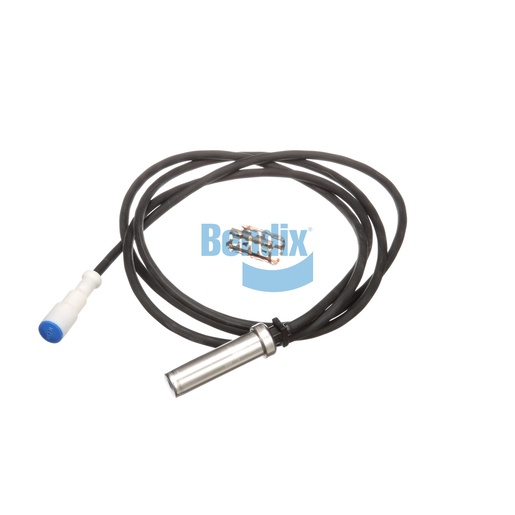

Wheel Speed Sensor
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Wheel Speed Sensor is a critical component in the anti-lock braking system (ABS) of commercial vehicles, providing accurate data on wheel speed to enhance vehicle control and safety. This sensor monitors the rotation of the wheel and sends real-time information to the ABS control module, allowing for precise adjustments during braking. With its advanced design and robust construction, it ensures long-lasting reliability and performance even under harsh conditions. Easy to install and compatible with a variety of truck models, the Wheel Speed Sensor is essential for maintaining the effectiveness of your ABS. For top-quality Bendix OEM parts, Source One Parts Center is the best choice, ensuring you have access to essential components that enhance the safety and performance of your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-002: Sensor - Wheel Speed
Width
101.6 mm (4.0 in)
Height
102.1 mm (4.02 in)
Harness Length
1987
Length
228.6 mm (9.0 in)
Maximum Operating Temperature
320 °F (160 °C)
Harmonized System (HS) Code
854370,903290
Connector Type
DIN 2-Pin Barrel Sealed Connector (Socket)
Country of Origin
Germany
Ingress Protection Rating
IPX9K
Convoluted Tubing Included
No
Grommet Included
No
Body Type
Straight
Clamping Sleeve Included
Yes
Grease Included
Yes
Weight
0.64 lb
