DESCRIPTION

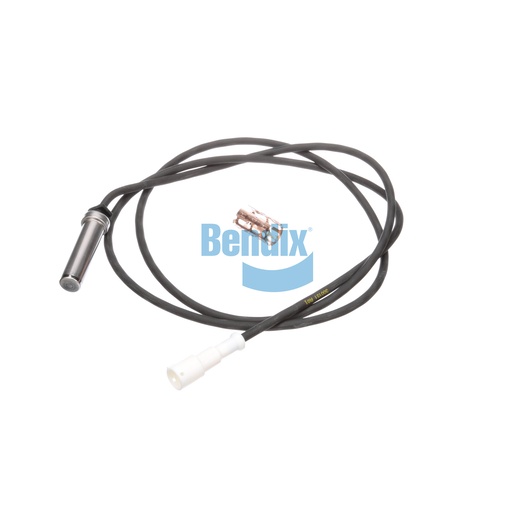

The Wheel Speed Sensor is a critical component of your trailer’s ABS system, providing real-time feedback on wheel speed to enhance braking performance and stability. Manufactured in Germany, this sensor is designed to withstand harsh environments while maintaining precise functionality. With a lightweight design of only 0.2 kg, it easily integrates into your existing braking system without adding unnecessary bulk. The sensor's advanced technology ensures accurate data transmission, which is essential for the proper functioning of anti-lock brake systems. By choosing genuine Bendix parts like this Wheel Speed Sensor, you ensure your trailer remains safe and efficient on the road. Source One Parts Center is the ideal place to find high-quality Bendix OEM parts, ensuring your commercial vehicles are always at their best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-002: Sensor - Wheel Speed
Width
101.6 mm (4.0 in)
Height
102.1 mm (4.02 in)
Harness Length
1687
Length
228.6 mm (9.0 in)
Maximum Operating Temperature
320 °F (160 °C)
Harmonized System (HS) Code
854370,903290
Connector Type
DIN 2-Pin Barrel Sealed Connector (Socket)
Country of Origin
Germany
Ingress Protection Rating
IPX9K
Convoluted Tubing Included
No
Grommet Included
No
Body Type
Straight
Clamping Sleeve Included
Yes
Grease Included
Yes
Weight
0.49 lb
