DESCRIPTION

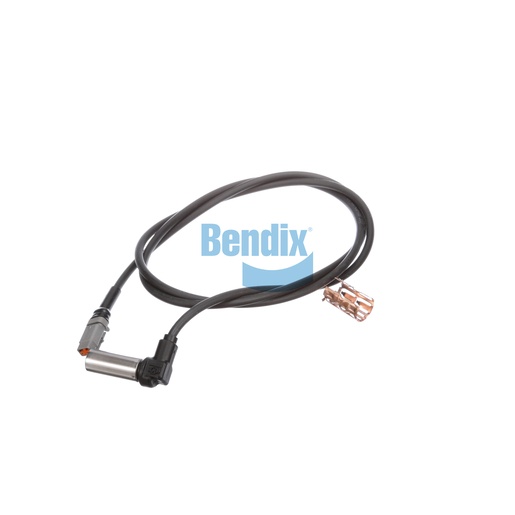

The Wheel Speed Sensor is a key component of the ABS and stability systems in commercial vehicles, providing real-time data on wheel rotation speeds. This information is crucial for the effective operation of anti-lock braking systems, as it helps prevent wheel lock-up during braking, enhancing vehicle safety and control. Designed for durability, this sensor can withstand harsh operating conditions, ensuring reliable performance over time. Its precise engineering allows for easy installation and compatibility with various Bendix systems, making it an essential part for fleet maintenance. When it comes to sourcing genuine Bendix parts, Source One Parts Center is your best option, offering authentic components that meet stringent quality standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-002: Sensor - Wheel Speed
Width
101.6 mm (4.0 in)
Height
102.1 mm (4.02 in)
Harness Length
1524
Length
228.6 mm (9.0 in)
Maximum Operating Temperature
320 °F (160 °C)
Harmonized System (HS) Code
854370,903290
Body Type
90°
Connector Type
Deutsch DTM Series 2-Way Sealed Connector (Female)
Ingress Protection Rating
IPX9K
Country of Origin
Mexico
Grommet Included
No
Wire Protection Sleeve Included
No
Clamping Sleeve Included
Yes
Grease Included
Yes
Weight
0.09 lb
