DESCRIPTION

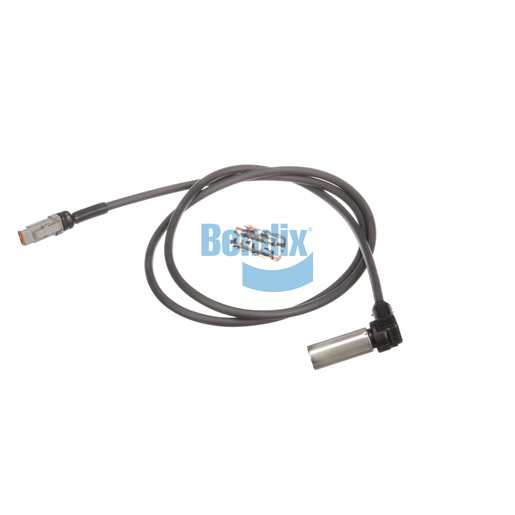

The Wheel Speed Sensor from Bendix is critical for ensuring the optimal functioning of your trailer's ABS and stability systems. Designed to provide accurate speed readings to the vehicle's control system, this sensor helps in preventing wheel lock-up during braking, significantly enhancing safety. It features a compact design with an ingress protection rating of IPX9K, ensuring that it can withstand harsh environmental conditions. With a maximum operating temperature of 320°F, it is built to perform reliably even in extreme heat. The sensor is easy to install, thanks to its straightforward connector design, and weighs just 0.2 kg. It is manufactured in Mexico, ensuring high-quality standards are met. For those looking for genuine Bendix OEM parts, Source One Parts Center is the premier destination for all your commercial vehicle needs, offering the best selection and service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-002: Sensor - Wheel Speed
Width
101.6 mm (4.0 in)
Height
102.1 mm (4.02 in)
Harness Length
1219
Length
228.6 mm (9.0 in)
Maximum Operating Temperature
320 °F (160 °C)
Harmonized System (HS) Code
854370
Body Type
90°
Connector Type
Deutsch DTM Series 2-Way Sealed Connector (Female)
Ingress Protection Rating
IPX9K
Country of Origin
Mexico
Convoluted Tubing Included
No
Grommet Included
No
Clamping Sleeve Included
Yes
Grease Included
Yes
Weight
0.53 lb
