$124.95
$149.94

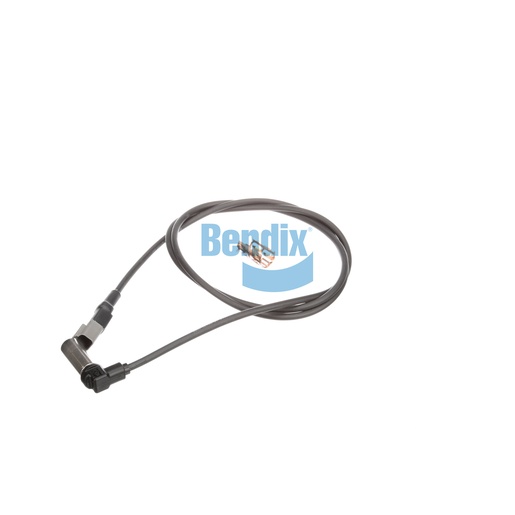

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Wheel Speed Sensor is an essential component of the ABS and stability systems in commercial vehicles, providing critical data for effective braking and stability control. This sensor is designed to monitor wheel rotation speed, transmitting accurate information to the vehicle’s control system to optimize braking performance. With a compact and durable design, this sensor is built to withstand harsh conditions, ensuring reliable operation in temperatures ranging from -40°F to 320°F. Its quick installation allows for minimal downtime, making it an indispensable part of vehicle maintenance. For those seeking genuine Bendix OEM parts, Source One Parts Center is the best place to purchase high-quality components, ensuring your commercial vehicles operate safely and efficiently.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-002: Sensor - Wheel Speed
Width
101.6 mm (4.0 in)
Height
102.1 mm (4.02 in)
Harness Length
1524
Length
228.6 mm (9.0 in)
Maximum Operating Temperature
320 °F (160 °C)
Harmonized System (HS) Code
854370,903290
Body Type
90°
Connector Type
Deutsch DT Series 2-Way Sealed Connector (Male)
Ingress Protection Rating
IPX9K
Country of Origin
Mexico
Grommet Included
No
Wire Protection Sleeve Included
No
Clamping Sleeve Included
Yes
Grease Included
Yes
Weight
0.64 lb
