DESCRIPTION

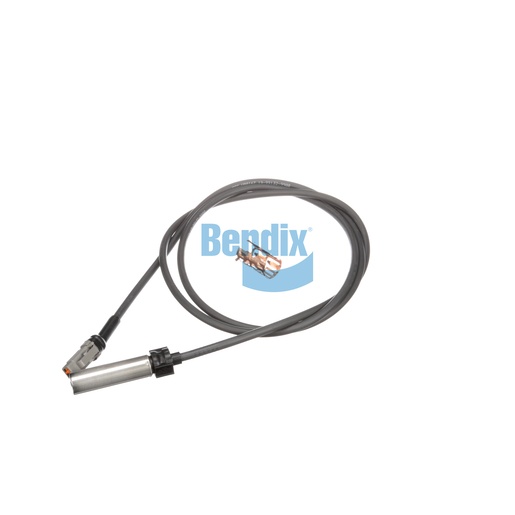

The Wheel Speed Sensor is a vital component in the anti-lock braking system (ABS) of your commercial truck, ensuring optimal safety and performance in braking situations. This sensor plays a crucial role by continuously monitoring the rotational speed of the wheels, allowing the ABS to adjust brake pressure and prevent wheel lock-up during sudden stops. It is designed to withstand extreme environmental conditions, operating effectively within a wide temperature range, making it ideal for heavy-duty applications. This component not only enhances driving safety but also contributes to better fuel efficiency by optimizing braking performance. With the Wheel Speed Sensor, you can expect reliable and accurate readings that maintain the integrity of your truck's braking system. For the best selection of genuine Bendix OEM parts, look no further than Source One Parts Center, where quality and reliability are our top priorities.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-002: Sensor - Wheel Speed
Width
101.6 mm (4.0 in)
Height
102.2 mm (4.02 in)
Harness Length
1524
Length
228.6 mm (9.0 in)
Maximum Operating Temperature
320 °F (160 °C)
Harmonized System (HS) Code
854370,903290
Connector Type
Deutsch DTM Series 2-Way Sealed Connector (Female)
Ingress Protection Rating
IPX9K
Country of Origin
Mexico
Grommet Included
No
Wire Protection Sleeve Included
No
Body Type
Straight
Clamping Sleeve Included
Yes
Grease Included
Yes
Weight
0.99 lb
