$119.95
$143.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

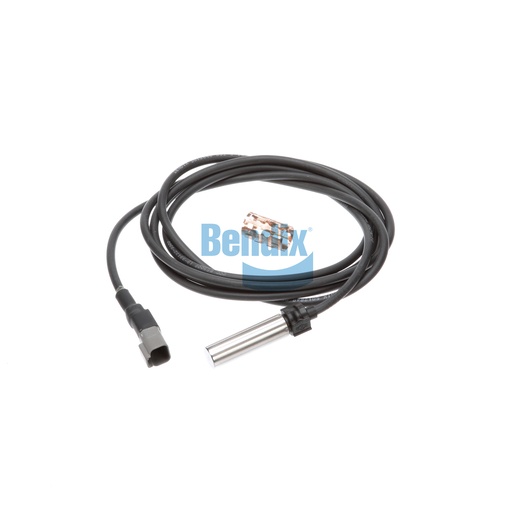

The Bendix Wheel Speed Sensor is a vital component in the ABS and stability systems of trailers, designed to provide accurate speed readings for optimal braking performance. This sensor features a straight body type and is constructed with durable materials that ensure reliability under various operating conditions. With a compact design and an ingress protection rating of IPX9K, this sensor is built to withstand harsh environments while delivering precise data to the vehicle's braking system. Its compatibility with various trailer models makes it an excellent choice for fleet operators looking to enhance safety and performance. By ensuring accurate speed detection, this sensor plays a crucial role in maintaining vehicle stability. For high-quality Bendix OEM parts, Source One Parts Center is your trusted source for genuine products that meet the highest standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-002: Sensor - Wheel Speed
Width
101.6 mm (4.0 in)
Height
102.2 mm (4.02 in)
Length
228.6 mm (9.0 in)
Harness Length
2617
Maximum Operating Temperature
320 °F (160 °C)
Harmonized System (HS) Code
854370
Connector Type
Deutsch DT Series 2-Way Sealed Connector (Male)
Ingress Protection Rating
IPX9K
Country of Origin
Mexico
Convoluted Tubing Included
No
Grommet Included
No
Body Type
Straight
Clamping Sleeve Included
Yes
Grease Included
Yes
Weight
0.73 lb
