$65.95
$79.14
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

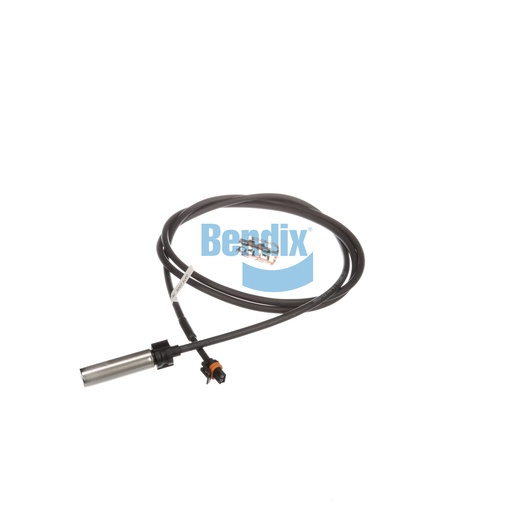

The Bendix Wheel Speed Sensor is an essential component for the ABS and stability control systems in trailers. This sensor provides critical data on wheel speed, allowing the braking system to adjust and optimize performance in real-time. With an ingress protection rating of IPX9K, it is designed to withstand harsh environmental conditions, ensuring reliable operation in various weather. Weighing only 0.3 kg (0.6 lb), this sensor is compact and easy to install, making it a key part of maintaining safety and performance in your vehicle. For the best selection of genuine Bendix OEM parts, Source One Parts Center is your trusted provider, ensuring your truck is equipped with top-quality components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-002: Sensor - Wheel Speed
Width
101.6 mm (4.0 in)
Height
102.2 mm (4.02 in)
Harness Length
1600
Length
228.6 mm (9.0 in)
Maximum Operating Temperature
320 °F (160 °C)
Harmonized System (HS) Code
854370
Ingress Protection Rating
IPX9K
Connector Type
Metri-Pack 150.2 Series 2-Way Sealed Connector (Female)
Country of Origin
Mexico
Convoluted Tubing Included
No
Grommet Included
No
Body Type
Straight
Clamping Sleeve Included
Yes
Grease Included
Yes
Weight
0.6 lb
