$66.95
$80.34
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

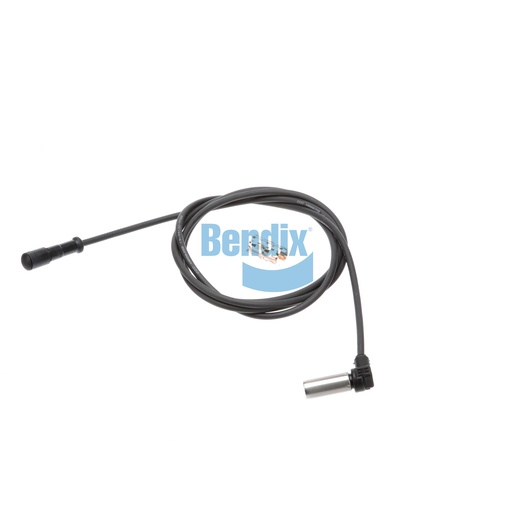

Elevate your vehicle's safety with the Bendix wheel speed sensor, a critical component for ABS and stability control systems. This sensor is designed to provide accurate speed readings, ensuring that your vehicle's braking system responds effectively in all situations. Weighing only 0.3 kg, it features a compact design that allows for easy installation and integration into your existing systems. Built to endure the harsh conditions faced on the road, this sensor is an essential part of maintaining optimal vehicle performance. For genuine Bendix OEM parts that you can trust, Source One Parts Center is your go-to destination.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-002: Sensor - Wheel Speed
Width
101.6 mm (4.0 in)
Height
102.2 mm (4.02 in)
Length
228.6 mm (9.0 in)
Harness Length
2286
Maximum Operating Temperature
320 °F (160 °C)
Harmonized System (HS) Code
854370
Body Type
90°
Connector Type
DIN 2-Pin Barrel Sealed Connector (Socket)
Ingress Protection Rating
IPX9K
Country of Origin
Mexico
Convoluted Tubing Included
No
Grommet Included
No
Clamping Sleeve Included
Yes
Grease Included
Yes
Weight
0.65 lb
