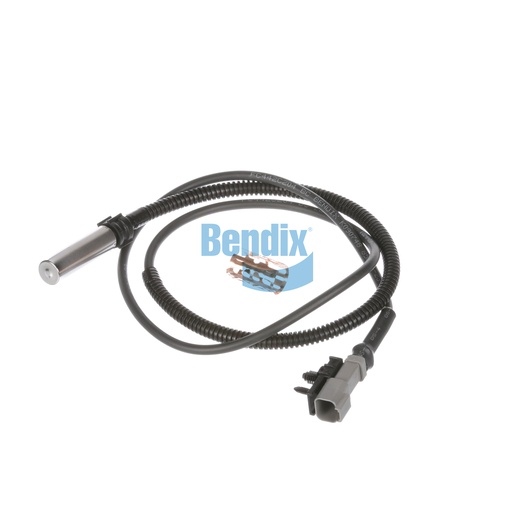

K102030
Wheel Speed Sensor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Wheel Speed Sensor is an essential component for maintaining optimal brake performance and vehicle stability in commercial trucks. Designed for precision and reliability, this sensor monitors the rotational speed of the wheels, providing crucial data to the anti-lock braking system (ABS) and stability control systems. Its robust construction allows it to withstand extreme temperatures ranging from -40°F to 320°F, ensuring reliable operation in harsh conditions. The sensor features a Deutsch DT Series 2-Way Sealed Connector, making installation straightforward and secure. With an ingress protection rating of IPX9K, it is engineered to resist moisture and contaminants, making it ideal for use in the demanding environments of commercial transport. The inclusion of a clamping sleeve and grease further enhances its longevity and performance. For those looking to replace or upgrade their wheel speed sensors, Source One Parts Center is your best choice for genuine Bendix OEM parts, ensuring you get quality components designed specifically for your vehicle's needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-002: Sensor - Wheel Speed
Width
101.6 mm (4.0 in)
Height
102.2 mm (4.02 in)
Harness Length
1185
Length
228.6 mm (9.0 in)
Maximum Operating Temperature
320 °F (160 °C)
Harmonized System (HS) Code
854370
Connector Type
Deutsch DT Series 2-Way Sealed Connector (Male)
Ingress Protection Rating
IPX9K
Country of Origin
Mexico
Grommet Included
No
Body Type
Straight
Clamping Sleeve Included
Yes
Grease Included
Yes
Wire Protection Sleeve Included
Yes
Weight
0.49 lb
