K102031

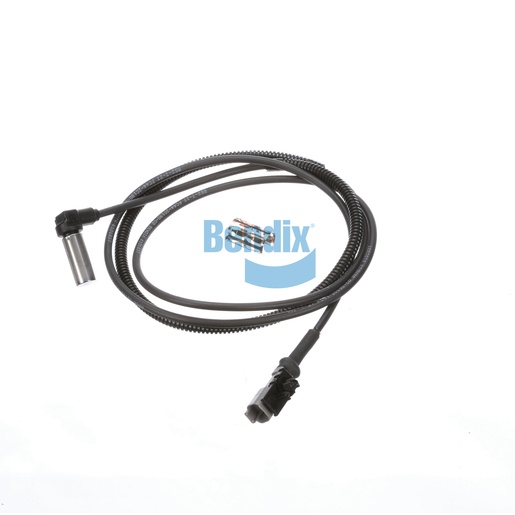

Wheel Speed Sensor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Wheel Speed Sensor is crucial for monitoring the speed of your trailer's wheels, playing a key role in the operation of the ABS and stability control systems. Designed with a 90° body type, this sensor provides accurate readings to help prevent wheel lockup during braking, enhancing safety on the road. With an ingress protection rating of IPX9K, it is built to withstand harsh environmental conditions, ensuring reliable performance over time. The sensor's compact design allows for easy installation and integration into your existing systems. For authentic Bendix OEM parts like this wheel speed sensor, Source One Parts Center is your trusted source, ensuring you receive high-quality components for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-002: Sensor - Wheel Speed
Width
101.6 mm (4.0 in)
Height
102.2 mm (4.02 in)
Harness Length
2052
Length
228.6 mm (9.0 in)
Maximum Operating Temperature
320 °F (160 °C)
Harmonized System (HS) Code
854370
Body Type
90°
Connector Type
Deutsch DT Series 2-Way Sealed Connector (Male)
Ingress Protection Rating
IPX9K
Country of Origin
Mexico
Grommet Included
No
Clamping Sleeve Included
Yes
Convoluted Tubing Included
Yes
Grease Included
Yes
Weight
0.64 lb
