K109090

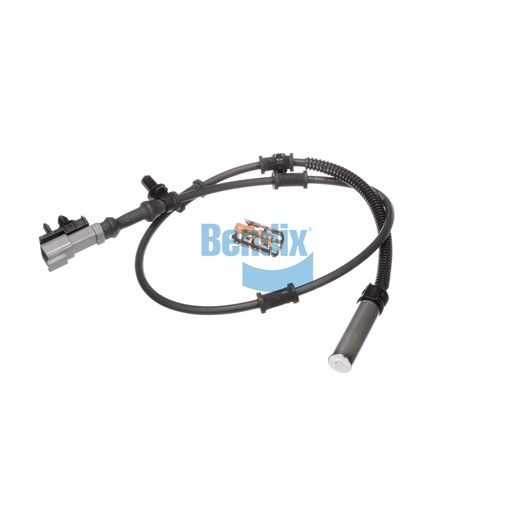

Wheel Speed Sensor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Wheel Speed Sensor from Bendix is an essential component for ABS and stability systems in trailers, providing accurate data for optimal braking performance. Designed to withstand harsh conditions, this sensor features a straight body type and a Deutsch DT series sealed connector, ensuring reliability and durability. With a maximum operating temperature of 320 °F and an ingress protection rating of IPX9K, it is built to perform under the most demanding conditions. This wheel speed sensor plays a crucial role in maintaining vehicle safety by providing real-time speed data to the braking system, improving response times and traction control. When looking for genuine Bendix OEM parts, Source One Parts Center is your go-to supplier, ensuring you receive high-quality components that enhance your vehicle's performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-002: Sensor - Wheel Speed
Width
101.6 mm (4.0 in)
Height
102.2 mm (4.02 in)
Length
228.6 mm (9.0 in)
Maximum Operating Temperature
320 °F (160 °C)
Harness Length
820
Harmonized System (HS) Code
854370
Connector Type
Deutsch DT Series 2-Way Sealed Connector (Male)
Ingress Protection Rating
IPX9K
Country of Origin
Mexico
Body Type
Straight
Clamping Sleeve Included
Yes
Convoluted Tubing Included
Yes
Grease Included
Yes
Grommet Included
Yes
Weight
0.47 lb
